Battery Sensor

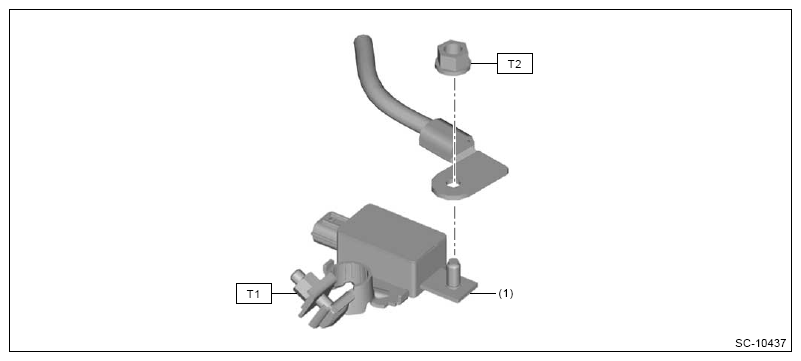

G16346913

Courtesy of SUBARU OF AMERICA, INC.

(1)	Battery sensor

Tightening torque: N.m (kgf-m,

ft-lb)

T1: 6 (0.6, 4.4)

T2: 7.5 (0.8, 5.5)
