Components With Torque Specifications: Starter

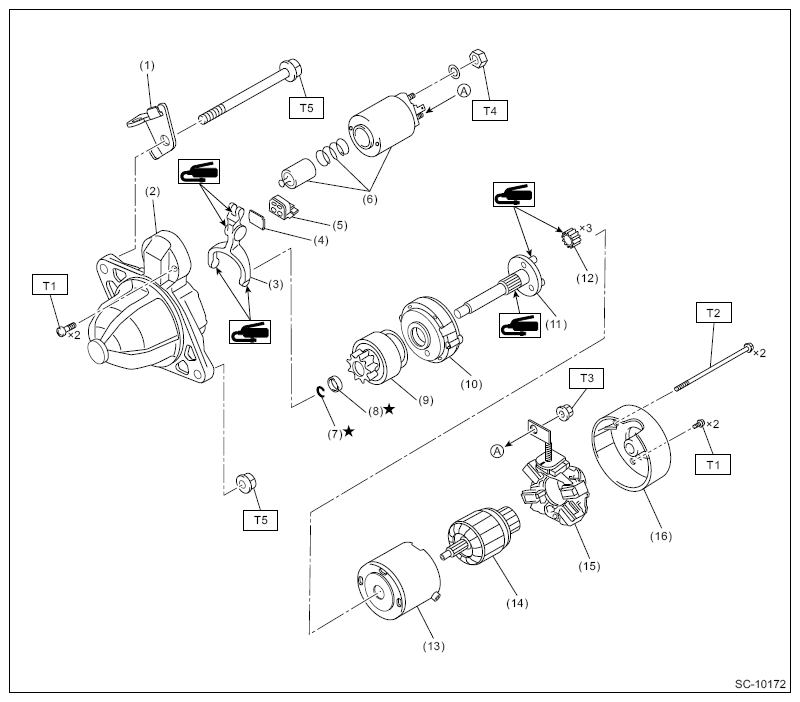

CVT model (model without Auto Start Stop)

G16346908

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cable stay
(2)	Starter housing
(3)	Shift lever
(4)	Plate
(5)	Seal rubber
(6)	Magnet switch ASSY
(7)	Snap ring
(8)	Stopper
(9)	Overrunning clutch
(10)	Internal gear
(11)	Shaft
(12)	Pinion gear
(13)	Yoke ASSY
(14)	Armature ASSY
(15)	Brush holder ASSY
(16)	Starter cover

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 3.5 (0.4, 2.6)

T3: 10.7 (1.1, 7.9)

T4: 11 (1.1, 8.1)

T5: 50 (5.1, 36.9)

CVT model (model with Auto Start Stop)

Courtesy of SUBARU OF AMERICA, INC.

(1) Cable stay

(2) Starter

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 11 (1.1, 8.1)

T3: 50 (5.1, 36.9)

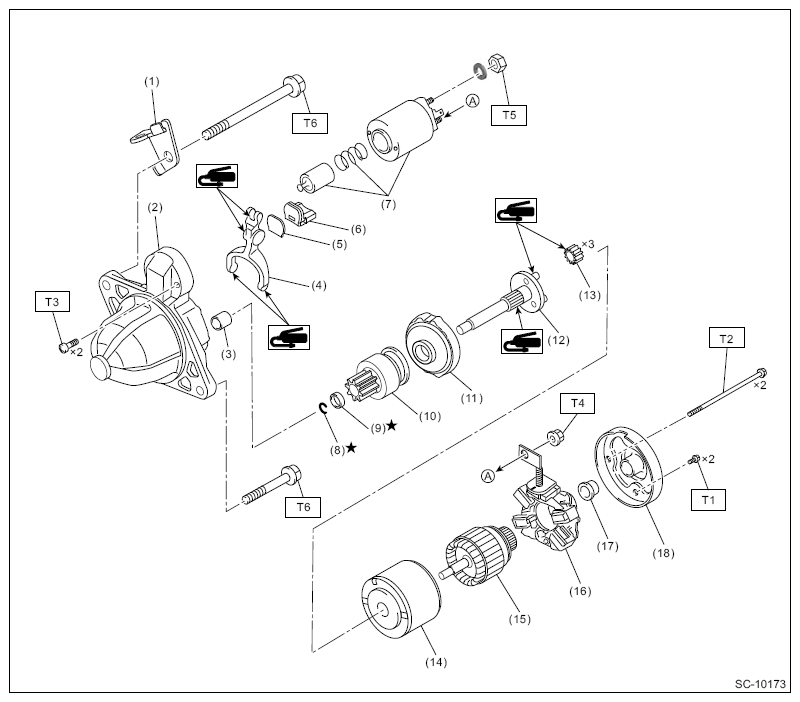

MT model

G16346910

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cable stay
(2)	Starter housing
(3)	Sleeve bearing
(4)	Shift lever
(5)	Plate
(6)	Seal rubber
(7)	Magnet switch ASSY
(8)	Snap ring
(9)	Stopper
(10)	Overrunning clutch
(11)	Internal gear
(12)	Shaft
(13)	Pinion gear
(14)	Yoke ASSY
(15)	Armature ASSY
(16)	Brush holder ASSY
(17)	Sleeve bearing
(18)	Starter cover

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.1, 1.0)

T2: 6 (0.6, 4.4)

T3: 7.5 (0.8, 5.5)

T4: 10 (1.0, 7.4)

T5: 11 (1.1, 8.1)

T6: 50 (5.1, 36.9)
