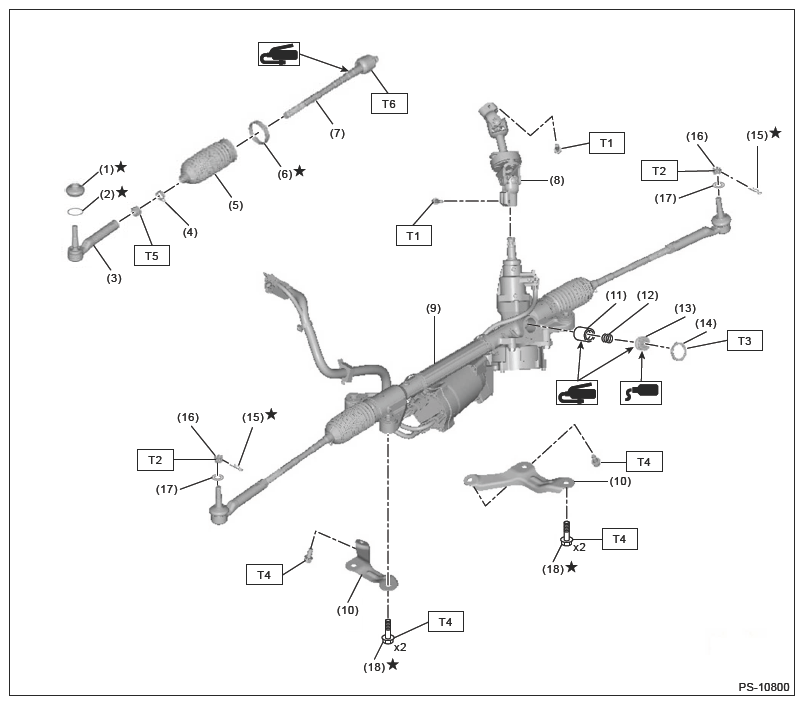

Steering Gearbox
| (1) | Dust seal |
| (2) | Clip - boot tie-rod end |
| (3) | Tie-rod end |
| (4) | Clip - boot tie-rod |
| (5) | Boot - steering gearbox |
| (6) | Band - boot |
| (7) | Tie-rod |
| (8) | Universal joint ASSY - steering |
| (9) | Steering gearbox ASSY |
| (10) | Stiffener |
| (11) | Pad - pressure |
| (12) | Spring - gearbox |
| (13) | Adjusting screw |
| (14) | Lock nut |
| (15) | Cotter pin |
| (16) | Castle nut |
| (17) | Washer (Impreza model only) |
| (18) | Bolt |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 24 (2.4, 17.7)
T2: 27 (2.8, 19.9)
T3: 49.4 (5.0, 36.4)
T4: 60 (6.1, 44.3)
T5: 85 (8.7, 62.7)
T6: Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>ELECTRIC POWER STEERING GEARBOX>ASSEMBLY .
