Abs Wheel Speed Sensor

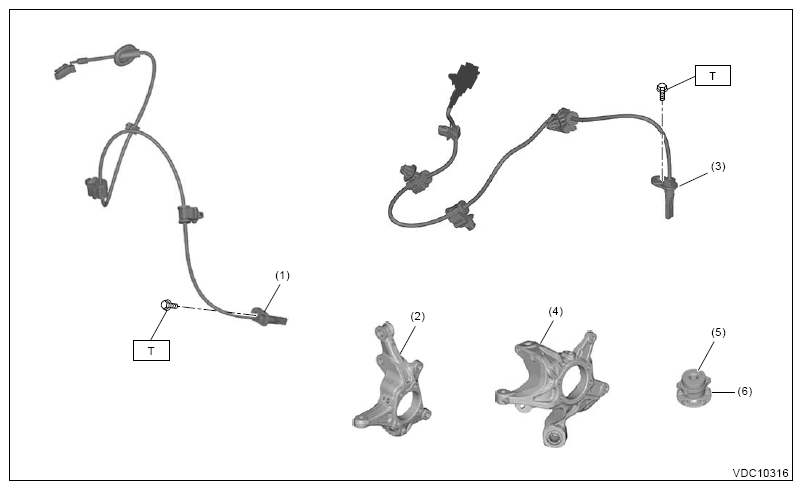

• Impreza model

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Front ABS wheel speed sensor
  (2)	Front axle housing
  (3)	Rear ABS wheel speed sensor
  (4)	Rear axle housing
  (5)	Magnetic encoder
  (6)	Hub unit bearing

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 7.5 (0.8, 5.5)

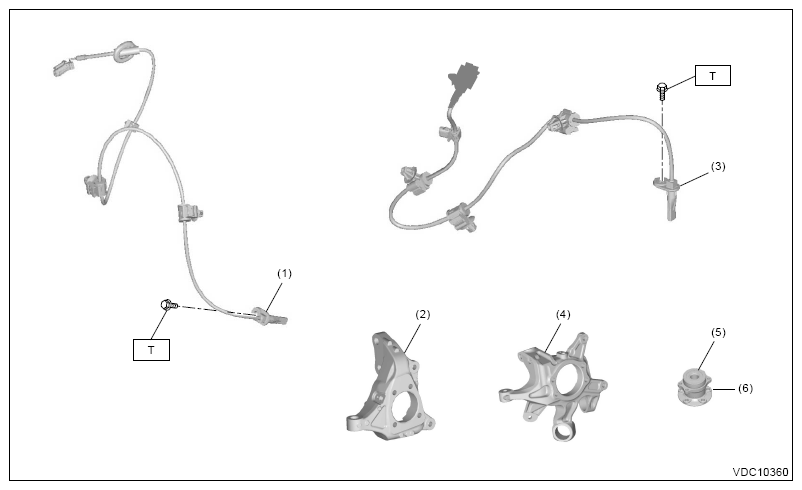

• Except for Impreza model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
