Front Suspension

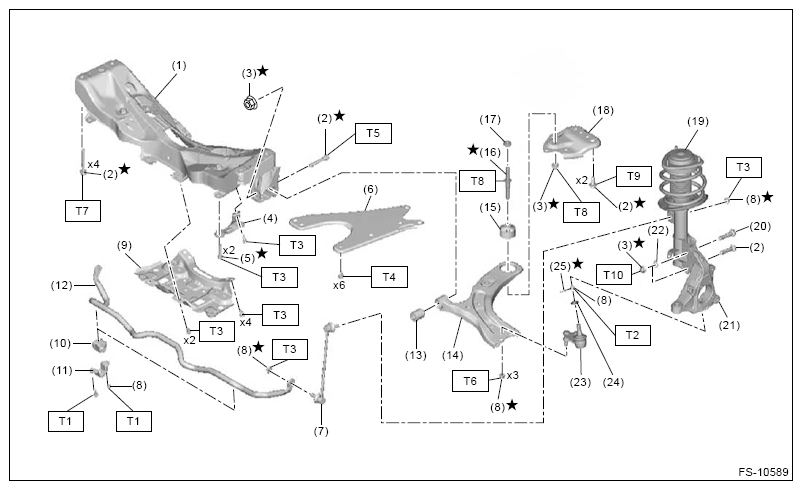

- Impreza model
(1) Crossmember COMPL (2) Flange bolt (3) Self-locking nut (4) Stiffener (5) Bolt (6) Crossmember support - rear (7) Stabilizer link (8) Flange nut (9) Crossmember support - front (10) Bushing - stabilizer (11) Clamp - stabilizer bushing (12) Stabilizer (13) Bushing front - front arm (14) Front arm ASSY (15) Bushing rear - front arm (16) Stud bolt(1) (17) Stopper arm front (18) Front arm rear plate (19) Front strut ASSY (20) Adjusting bolt (21) Front axle housing (22) Adjusting washer (23) Ball joint (24) Washer (25) Snap pin (1) Do not reuse the stud bolt when it has been removed from the vehicle. Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 51 (5.2, 37.6)
T3: 60 (6.1, 44.3)
T4: 70 (7.1, 51.6)
T5: 95 (9.7, 70.1)
T6: 100 (10.2, 73.8)
T7: 104 (10.6, 76.7)
T8: 110 (11.2, 81.1)
T9: 150 (15.3, 110.6)
T10: 155 (15.8, 114.3)

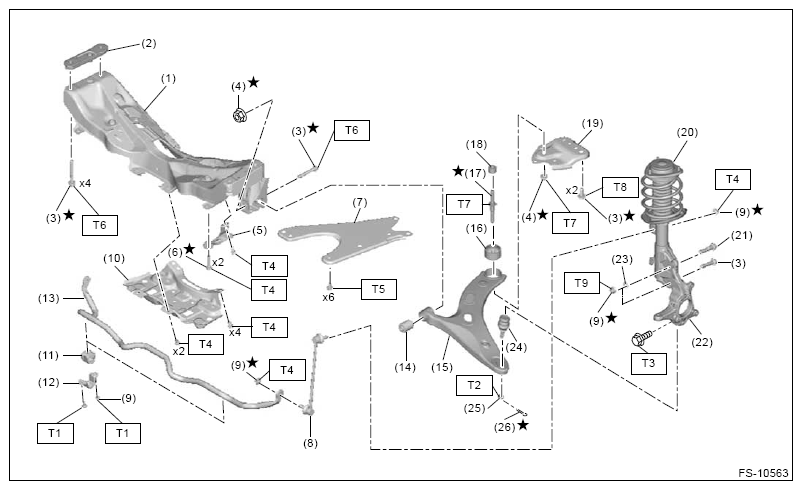

- Crosstrek model
| (1) | Crossmember COMPL | ||
| (2) | Spacer | ||
| (3) | Flange bolt | ||
| (4) | Self-locking nut | ||
| (5) | Stiffener | ||
| (6) | Bolt | ||
| (7) | Crossmember support - rear | ||
| (8) | Stabilizer link | ||
| (9) | Flange nut | ||
| (10) | Crossmember support - front | ||
| (11) | Bushing - stabilizer | ||
| (12) | Clamp - stabilizer bushing | ||
| (13) | Stabilizer | ||
| (14) | Bushing front - front arm | ||
| (15) | Front arm ASSY | ||
| (16) | Bushing rear - front arm | ||
| (17) | Stud bolt(1) | ||
| (18) | Stopper arm front | ||
| (19) | Front arm rear plate | ||
| (20) | Front strut ASSY | ||
| (21) | Adjusting bolt | ||
| (22) | Front axle housing | ||
| (23) | Adjusting washer | ||
| (24) | Ball joint | ||
| (25) | Castle nut | ||
| (26) | Cotter pin | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 39 (4.0, 28.8)
T3: 50 (5.1, 36.9)
T4: 60 (6.1, 44.3)
T5: 70 (7.1, 51.6)
T6: 95 (9.7, 70.1)
T7: 110 (11.2, 81.1)
T8: 150 (15.3, 110.6)
T9: 155 (15.8, 114.3)
