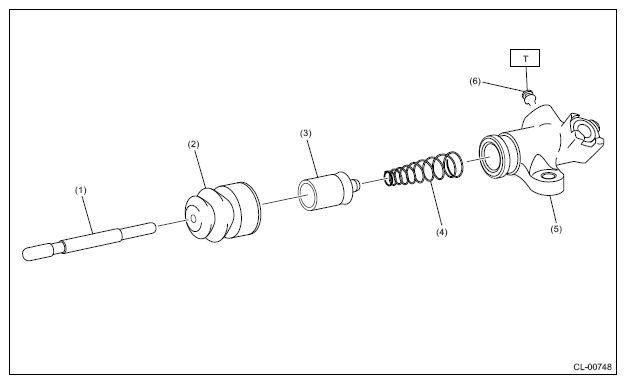

Operating Cylinder
| (1) | Push rod |
| (2) | Boot |
| (3) | PISTON |
| (4) | Piston spring |
| (5) | OPERATING CYLINDER |
| (6) | Bleeder screw |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.8 (0.8, 5.8)
| (1) | Push rod |
| (2) | Boot |
| (3) | PISTON |
| (4) | Piston spring |
| (5) | OPERATING CYLINDER |
| (6) | Bleeder screw |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.8 (0.8, 5.8)
