Fuel Pump

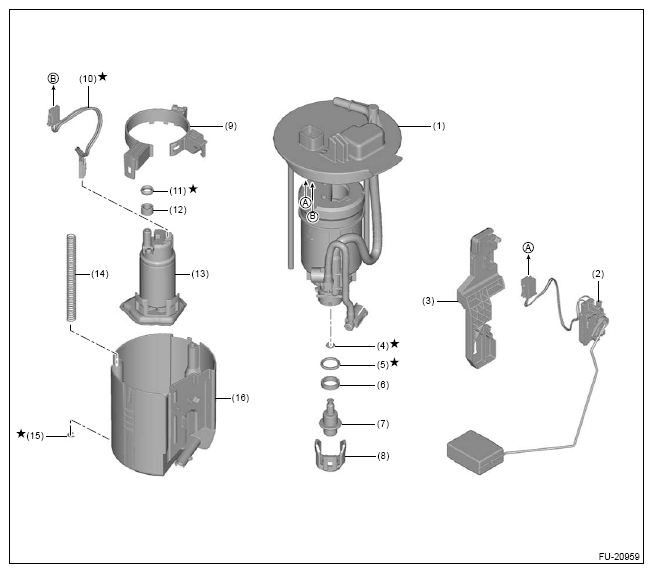

G16347017

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel filter ASSY
(2)	Fuel level sensor
(3)	Stay
(4)	O-ring
(5)	O-ring
(6)	Back-up ring
(7)	Pressure regulator
(8)	Pressure regulator cap
(9)	Fuel pump holder
(10)	Connector cable
(11)	O-ring
(12)	Spacer
(13)	Fuel pump
(14)	Spring
(15)	Clip
(16)	Fuel chamber ASSY
