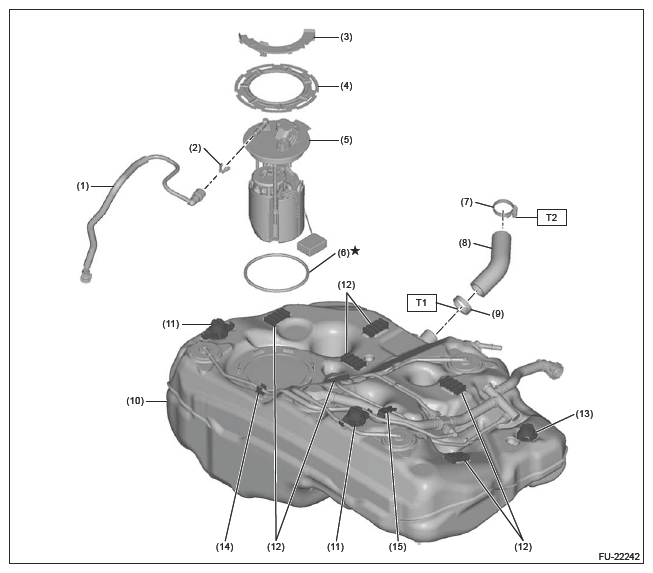

Fuel Tank 1
| (1) | Fuel delivery tube |
| (2) | Retainer |
| (3) | Harness protector |
| (4) | Upper plate |
| (5) | Fuel pump ASSY |
| (6) | Gasket |
| (7) | Clamp |
| (8) | Fuel filler hose |
| (9) | Clamp |
| (10) | Fuel tank |
| (11) | Cushion ASSY |
| (12) | Cushion* |
| (13) | Cushion ASSY |
| (14) | Tube clamp |
| (15) | Tube clamp |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 5 (0.5, 3.7)
*: When removing from the fuel tank, replace it with a new part .
