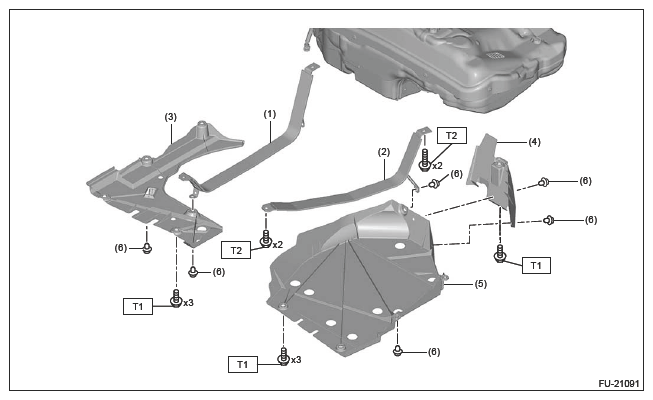

Fuel Tank 3
| (1) | Fuel tank band RH |
| (2) | Fuel tank band LH |
| (3) | Fuel tank protector |
| (4) | Cover No. 1 of inverter with converter assembly |
| (5) | Cover No. 2 of inverter with converter assembly |
| (6) | Clip |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 18 (1.8, 13.3)
T2: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL TANK>INSTALLATION .
