General Description
›
Components With Torque Specifications
›
Throttle Body

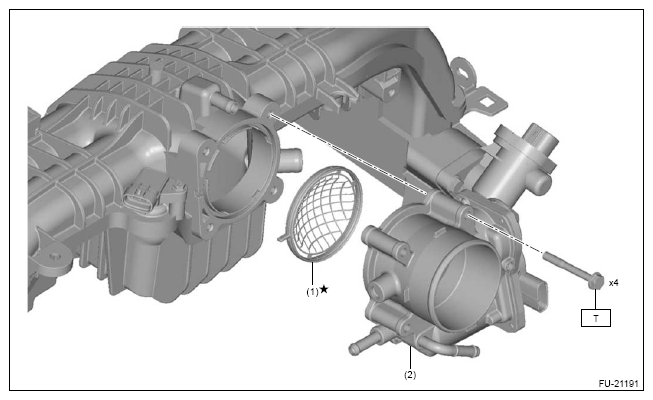

Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
(1)
Gasket
(2)
Throttle body
Tightening torque: N.m (kgf-m, ft-lb)
T: 8 (0.8, 5.9)
Courtesy of SUBARU OF AMERICA, INC.
