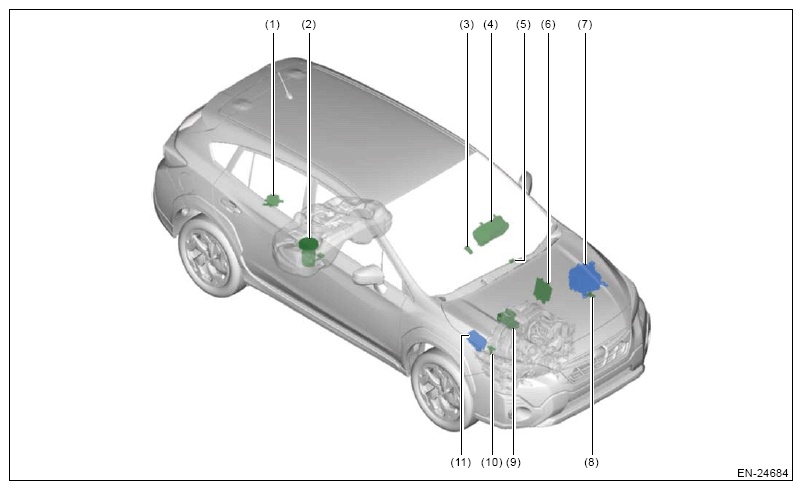

Engine Control System (2.5L) (Diagnostics) - Introduction: Electrical Component Location: Location: Body

Courtesy of SUBARU OF AMERICA, INC.

(1)	Leak check valve ASSY
(2)	Fuel pump
(3)	Push button ignition switch
(4)	Combination meter
(5)	Data link connector
(6)	Engine control module (ECM)
(7)	M/B
(8)	{Battery sensor}
(9)	Starter
(10)	Air flow sensor
(11)	Relay holder
