Reverse Assist Braking Control Module

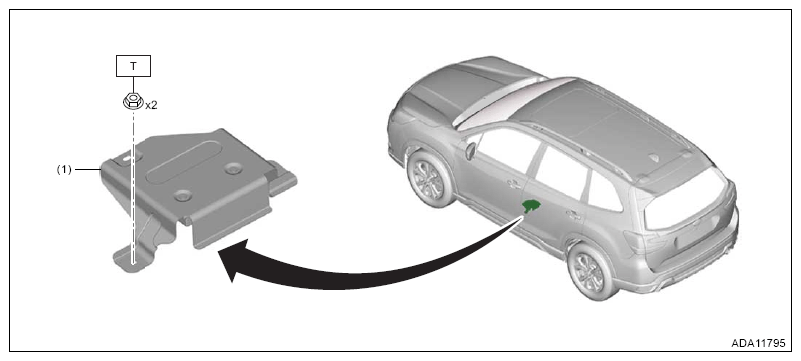

Fig 1: Reverse Assist Braking Control Module Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Sonar Control Module ASSY

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
