Front Seat

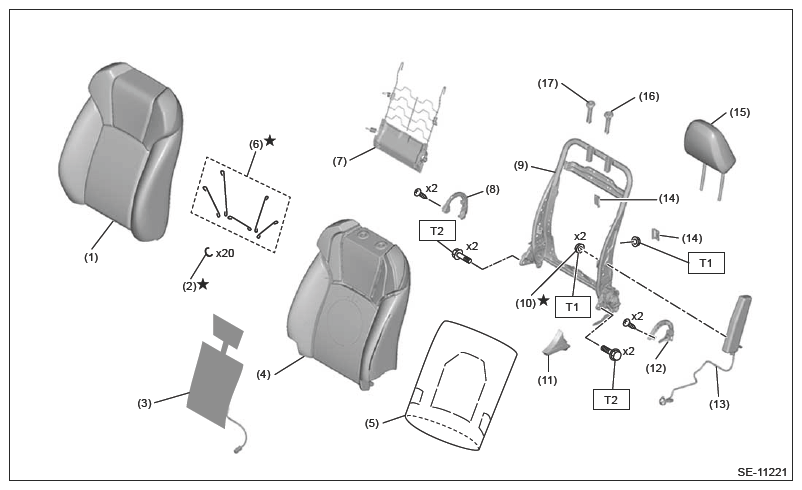

- Driver's seat (manual type)
| (1) | Cover front seat backrest |
| (2) | Hog ring |
| (3) | Heater unit front seat backrest (model with seat heater) |
| (4) | Seat pad ASSY backrest |
| (5) | Silent seat |
| (6) | Wire set front seat backrest |
| (7) | Flat mat & hook spring ASSY |
| (8) | Hinge base cover inside |
| (9) | Seat frame ASSY backrest |
| (10) | Self-locking nut |
| (11) | Knob hinge reclining |
| (12) | Hinge base cover outside |
| (13) | Side airbag module |
| (14) | Protector spring |
| (15) | Headrest ASSY |
| (16) | Bushing headrest lock |
| (17) | Bushing headrest free |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

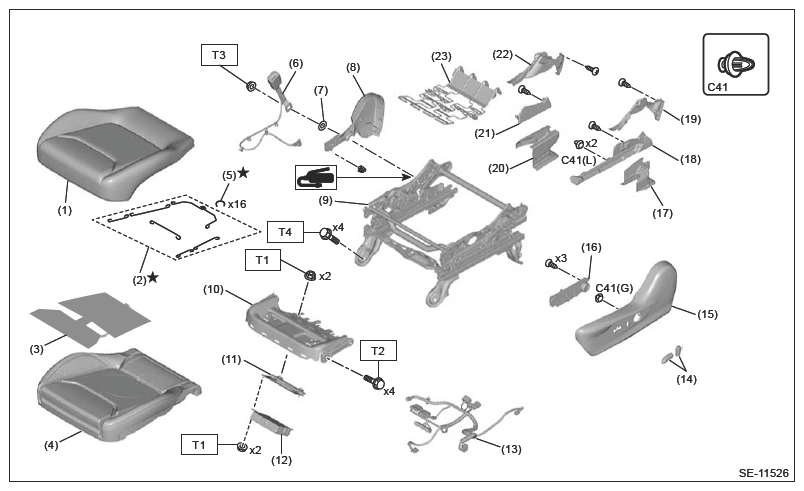

| (1) | Cover front seat cushion | ||
| (2) | Wire set front seat cushion | ||
| (3) | Seat heater unit front seat cushion (model with seat heater) | ||
| (4) | Seat pad ASSY cushion | ||
| (5) | Hog ring | ||
| (6) | Seat belt INN front(1) | ||
| (7) | Spring wave washer | ||
| (8) | Cover hinge inside | ||
| (9) | Seat frame ASSY cushion | ||
| (10) | Lever towel bar | ||
| (11) | Cover hinge outside | ||
| (12) | Knob lifter | ||
| (13) | Cover bolt rear outside | ||
| (14) | Cover riser BRKT INN | ||
| (15) | Cover INN cushion outside | ||
| (16) | Cover bolt rear inside | ||
| (17) | Cover riser link | ||
| (18) | Cover INN cushion inside | ||
| (19) | Panel front wire | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 38 (3.9, 28.0)
T2: Ref. to SEATS>FRONT SEAT>INSTALLATION .

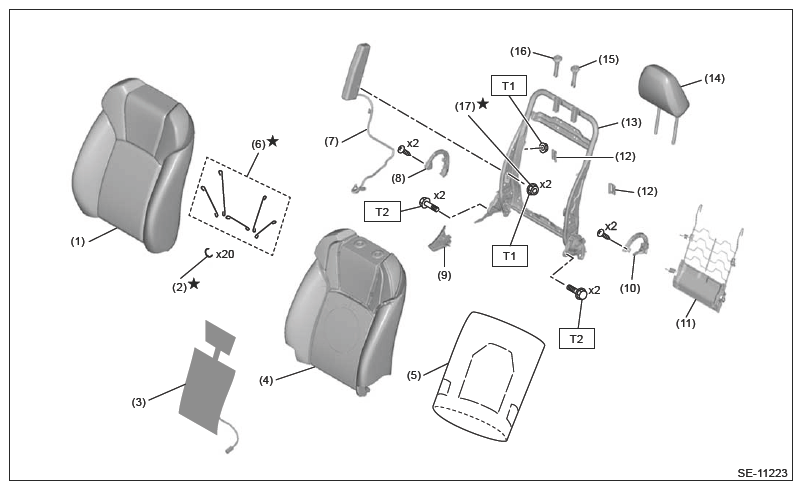

- Driver's seat (power type)
| (1) | Cover front seat backrest |
| (2) | Hog ring |
| (3) | Heater unit front seat backrest (model with seat heater) |
| (4) | Seat pad ASSY backrest |
| (5) | Silent seat |
| (6) | Wire set front seat backrest |
| (7) | Flat mat & hook spring ASSY |
| (8) | Hinge base cover inside |
| (9) | Seat frame ASSY backrest |
| (10) | Backrest harness ASSY lumbar |
| (11) | Harness ASSY backrest |
| (12) | Self-locking nut |
| (13) | Hinge base cover outside |
| (14) | Side airbag module |
| (15) | Protector spring |
| (16) | Headrest ASSY |
| (17) | Bushing headrest lock |
| (18) | Bushing headrest free |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

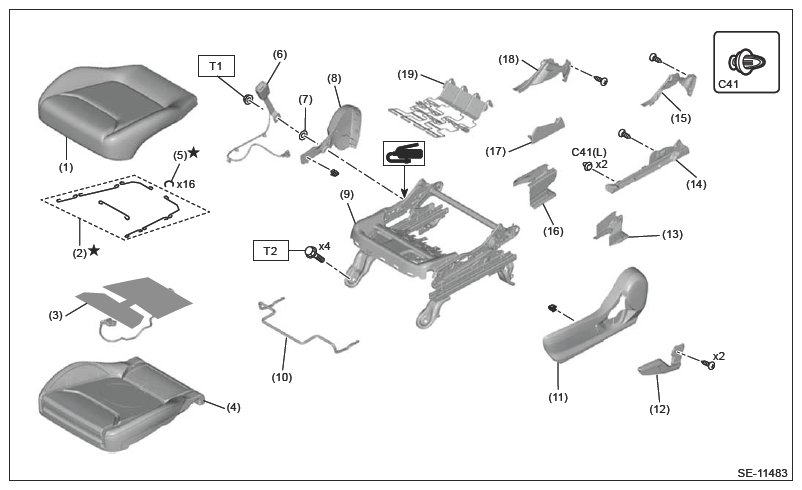

| (1) | Cover front seat cushion | ||
| (2) | Wire set front seat cushion | ||
| (3) | Heater unit front seat cushion (model with seat heater) | ||
| (4) | Seat pad ASSY cushion | ||
| (5) | Hog ring | ||
| (6) | Seat belt INN front(1) | ||
| (7) | Spring wave washer | ||
| (8) | Cover hinge inside | ||
| (9) | Seat frame ASSY cushion | ||
| (10) | Panel ASSY cushion | ||
| (11) | Power seat & remote control mirror contol module BRKT (model with seat memory function) | ||
| (12) | Power seat & remote control mirror control module (model with seat memory function) | ||
| (13) | Harness ASSY cushion | ||
| (14) | Knob power seat | ||
| (15) | Hinge cover outside | ||
| (16) | Switch ASSY power seat | ||
| (17) | Cover bolt rear outside | ||
| (18) | Cover riser BRKT INN | ||
| (19) | Cover INN cushion outside | ||
| (20) | Cover bolt rear inside | ||
| (21) | Cover riser link | ||
| (22) | Cover INN cushion inside | ||
| (23) | Panel front wire | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 15 (1.5, 11.1)
T3: 38 (3.9, 28.0)
T4: Ref. to SEATS>FRONT SEAT>INSTALLATION .

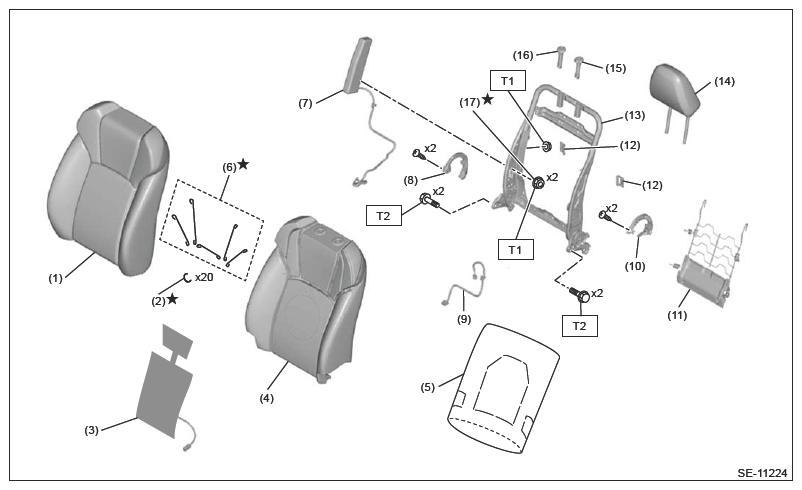

- Passenger's seat (manual type)
| (1) | Cover front seat backrest |
| (2) | Hog ring |
| (3) | Seat heater unit front seat backrest (model with seat heater) |
| (4) | Seat pad ASSY backrest |
| (5) | Silent seat |
| (6) | Wire set front seat backrest |
| (7) | Side airbag module |
| (8) | Hinge base cover outside |
| (9) | Knob hinge reclining |
| (10) | Hinge base cover inside |
| (11) | Flat mat & hook spring ASSY |
| (12) | Protector spring |
| (13) | Seat frame ASSY backrest |
| (14) | Headrest ASSY |
| (15) | Bushing headrest lock |
| (16) | Bushing headrest free |
| (17) | Self-locking nut |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

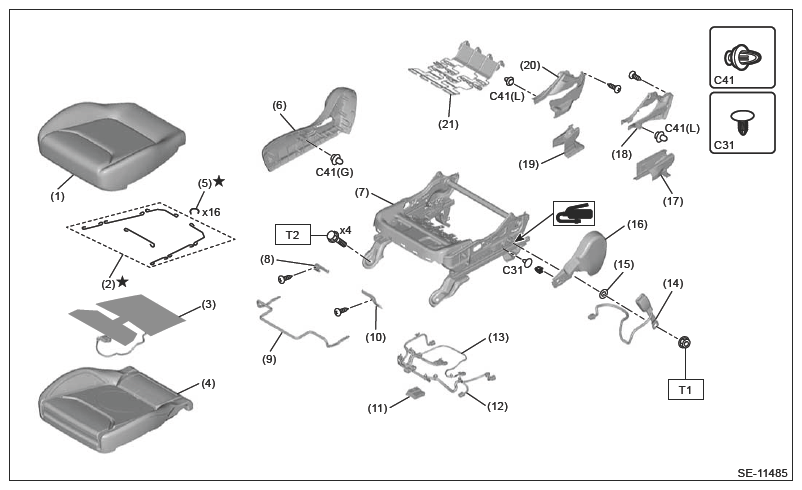

| (1) | Cover front seat cushion |
| (2) | Wire set front seat cushion |
| (3) | Heater unit front seat cushion (model with seat heater) |
| (4) | Seat pad ASSY cushion |
| (5) | Hog ring |
| (6) | Cover hinge outside |
| (7) | Seat frame ASSY cushion |
| (8) | Cover edge cushion outside |
| (9) | Lever towel bar |
| (10) | Cover edge cushion inside |
| (11) | Occupant detection control module |
| (12) | Harness ASSY occupant detection system |
| (13) | Harness ASSY seat position sensor |
| (14) | Seat belt INN front |
| (15) | Spring wave washer |
| (16) | Cover hinge inside |
| (17) | Cover bolt rear inside |
| (18) | Cover INN cushion inside |
| (19) | Cover bolt rear outside |
| (20) | Cover INN cushion outside |
| (21) | Panel front wire |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 38 (3.9, 28.0)
T2: Ref. to SEATS>FRONT SEAT>INSTALLATION .
*: Apply grease when replacing the seat belt INN front. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN .
NOTE:
Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.

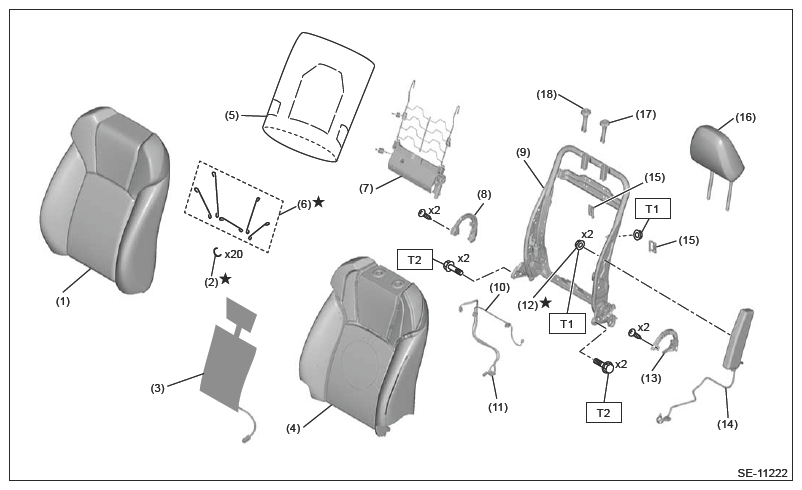

- Passenger's seat (power type)
| (1) | Cover front seat backrest |
| (2) | Hog ring |
| (3) | Seat heater unit front seat backrest (model with seat heater) |
| (4) | Seat pad ASSY backrest |
| (5) | Silent seat |
| (6) | Wire set front seat backrest |
| (7) | Side airbag module |
| (8) | Hinge base cover outside |
| (9) | Harness ASSY reclining |
| (10) | Hinge base cover inside |
| (11) | Flat mat & hook spring ASSY |
| (12) | Protector spring |
| (13) | Seat frame ASSY backrest |
| (14) | Headrest ASSY |
| (15) | Bushing headrest lock |
| (16) | Bushing headrest free |
| (17) | Self-locking nut |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

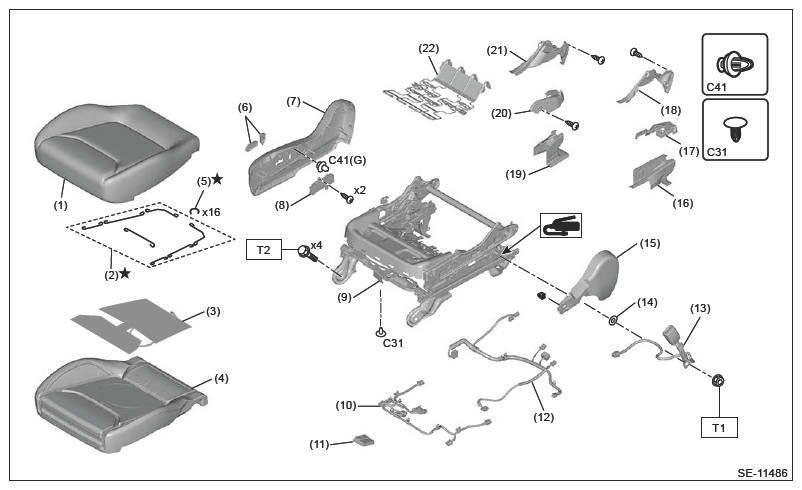

| (1) | Cover front seat cushion | ||
| (2) | Wire set front seat cushion | ||
| (3) | Heater unit front seat cushion (model with seat heater) | ||
| (4) | Seat pad ASSY cushion | ||
| (5) | Hog ring | ||
| (6) | Knob power seat | ||
| (7) | Cover hinge outside | ||
| (8) | Switch ASSY power seat | ||
| (9) | Seat frame ASSY cushion | ||
| (10) | Harness ASSY occupant detection system | ||
| (11) | Occupant detection control module | ||
| (12) | Harness ASSY cushion | ||
| (13) | Seat belt INN front(1) | ||
| (14) | Spring wave washer | ||
| (15) | Cover hinge inside | ||
| (16) | Cover bolt rear inside | ||
| (17) | Rail rear link cover INN | ||
| (18) | Cover INN cushion inside | ||
| (19) | Cover bolt rear outside | ||
| (20) | Rail rear link cover OUT | ||
| (21) | Cover INN cushion outside | ||
| (22) | Panel front wire | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 38 (3.9, 28.0)
T2: Ref. to SEATS>FRONT SEAT>INSTALLATION .
NOTE:
Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.
