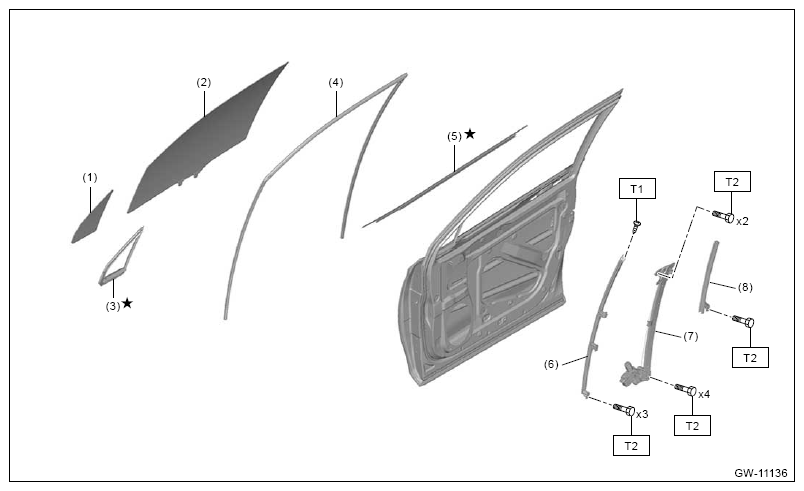

Front Door Glass
| (1) | Glass front door partition |
| (2) | Glass ASSY front door |
| (3) | Weather strip front door partition |
| (4) | Running channel front door |
| (5) | Weather strip outer front door |
| (6) | Sash ASSY partition |
| (7) | Regulator & motor ASSY front |
| (8) | Sash ASSY front door lower |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2.2 (0.2, 1.6)
T2: 7.5 (0.8, 5.5)
