Cylinder Block 2

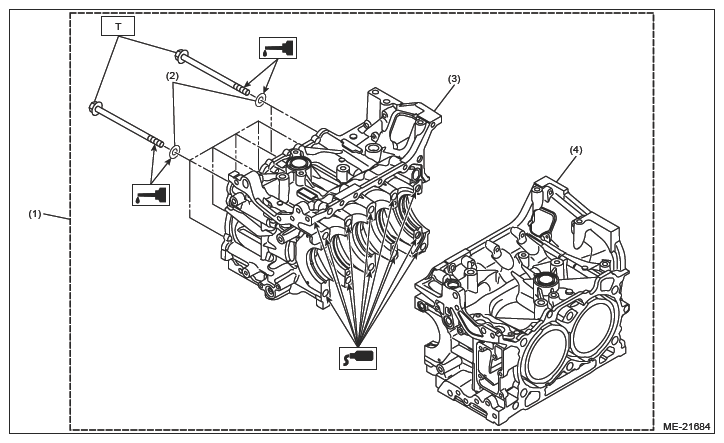

Fig 1: Cylinder Block 2 Components Location

G16346073

Courtesy of SUBARU

(1)	Cylinder block ASSY
(2)	Washer
(3)	Cylinder block RH
(4)	Cylinder block LH

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO)>CYLINDER BLOCK>INSTALLATION .
