Heat Shield Cover

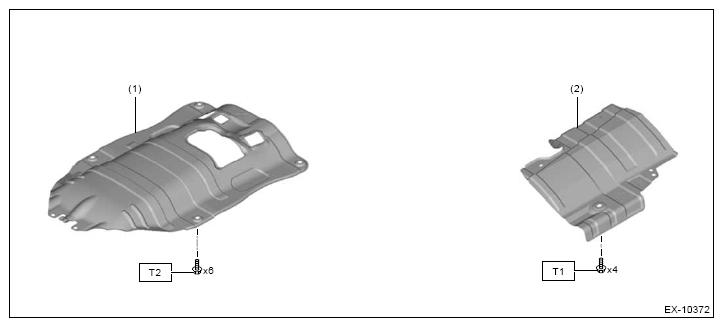

G16335551

Courtesy of SUBARU OF AMERICA, INC.

(1)	Center exhaust cover
(2)	Rear exhaust cover

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
