Crank Pulley

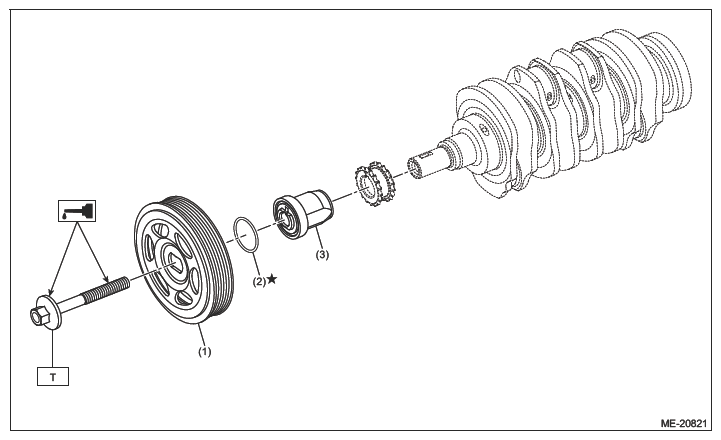

Fig 1: Crank Pulley Components Location

G16335116

Courtesy of SUBARU

(1)	Crank pulley
(2)	O-ring
(3)	Crank pulley boss

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO)>CRANK PULLEY>INSTALLATION .
