Engine Mounting

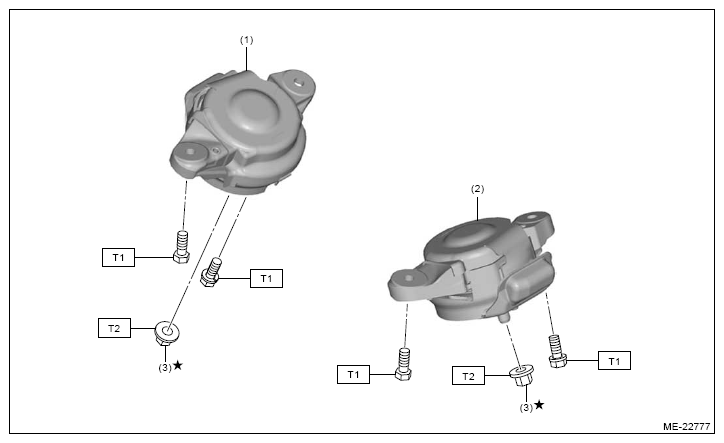

Fig 1: Engine Mounting Components Location
G16335126Courtesy of SUBARU
(1) Front cushion rubber RH
(2) Front cushion rubber LH
(3) Nut

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 90 (9.2, 66.4)
