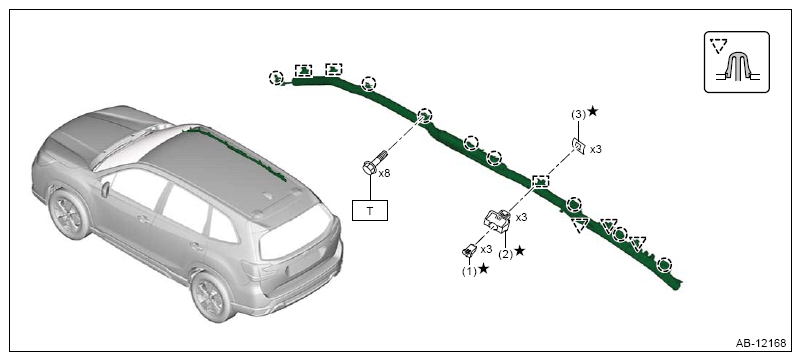

Curtain Airbag Module

G16338773

Courtesy of SUBARU OF AMERICA, INC.

(1)	Clip pin
(2)	Clip bushing
(3)	Spacer

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
