Transmission Control Module

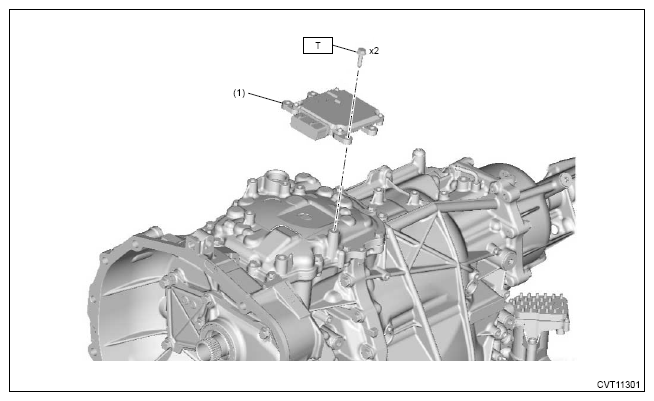

Transmission Control Module
Courtesy of SUBARU OF AMERICA, INC.
(1)
Transmission control module (TCM)
Tightening torque: N.m (kgf-m, ft-lb)
T: 7 (0.7, 5.3)
Courtesy of SUBARU OF AMERICA, INC.
