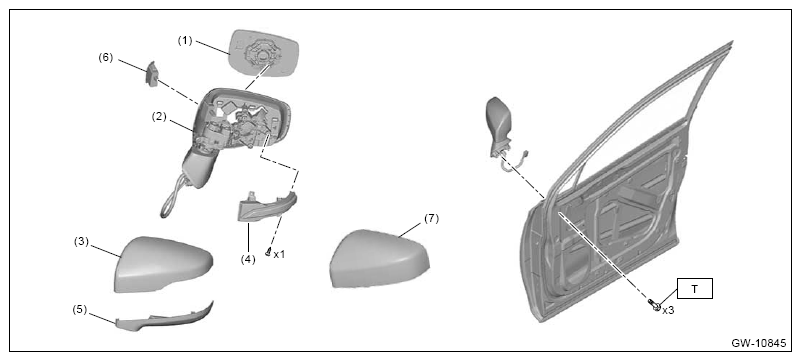

Outer Mirror
| (1) | Mirror repair |
| (2) | Mirror unit door |
| (3) | Cover cap outer mirror (model with side turn light) |
| (4) | Light ASSY side turn mirror (model with side turn light) |
| (5) | Cover cap outer mirror lower |
| (6) | Blind Spot Detection/Rear Cross Traffic Alert system indicator (model with Blind Spot Detection/Rear Cross Traffic Alert system) |
| (7) | Cover cap outer mirror (model without side turn light) |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
