Wide Angle Mono Camera Adjustment, Inspection: Procedure: Notes
CAUTION:
- Perform the wide angle mono camera adjustment and inspection without passengers.
- Handle TARGET CHART carefully so as not to break it with the adhesive force of the tape.
- When [Optical Axis Adjustment] and [Optical Axis Adjustment Preparation] of [Work Support] is pressed mistakenly when the wide angle mono camera adjustment and inspection are not necessary, select [Cancel] and turn the ignition switch to OFF.

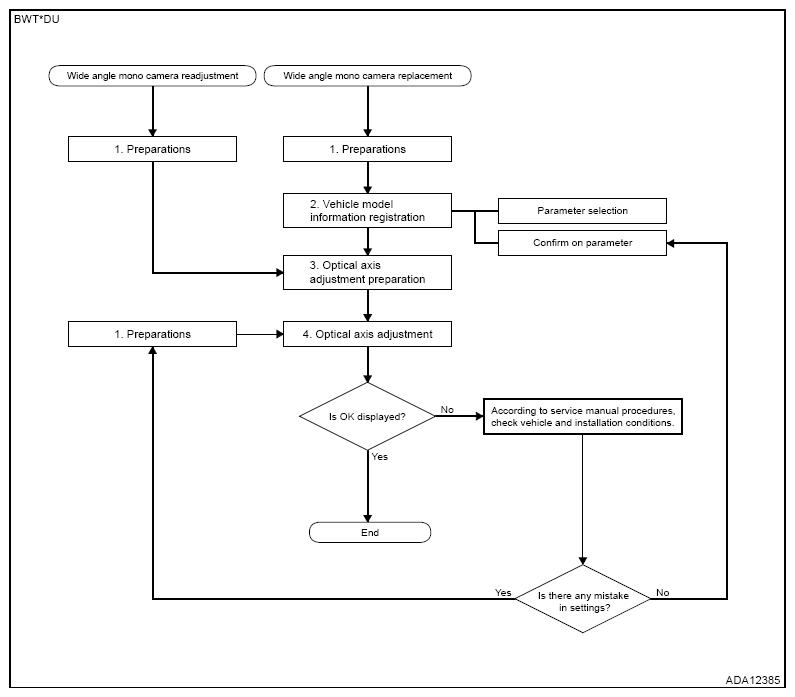

Perform inspection or adjustment according to the following flowchart.
NOTE:
- When the wide angle mono camera, lens hood assembly, or windshield glass has been removed/reinstalled, always perform readjustment of the wide angle mono camera.
- If [Optical Axis Adjustment] is started when the model information is not registered, NG termination will occur because the implementation conditions are not met.
