Subaru
›
2023
›
Outback Base
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Telematics System (Diagnostics)
›
General Description
›

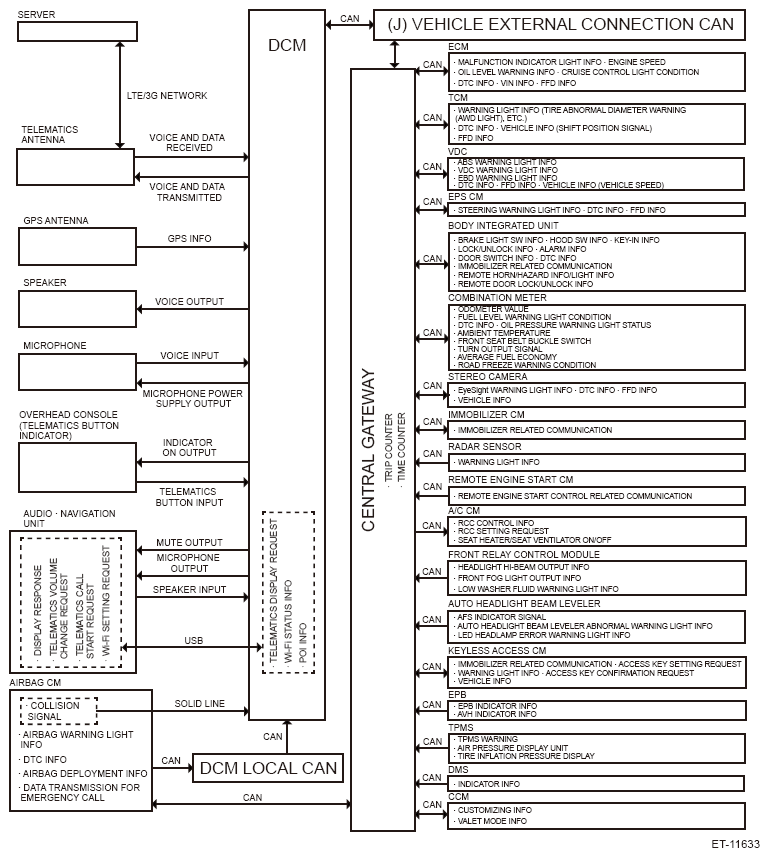

System Block Diagram
System Block Diagram
Main signals used between DCM and relevant Control Module
