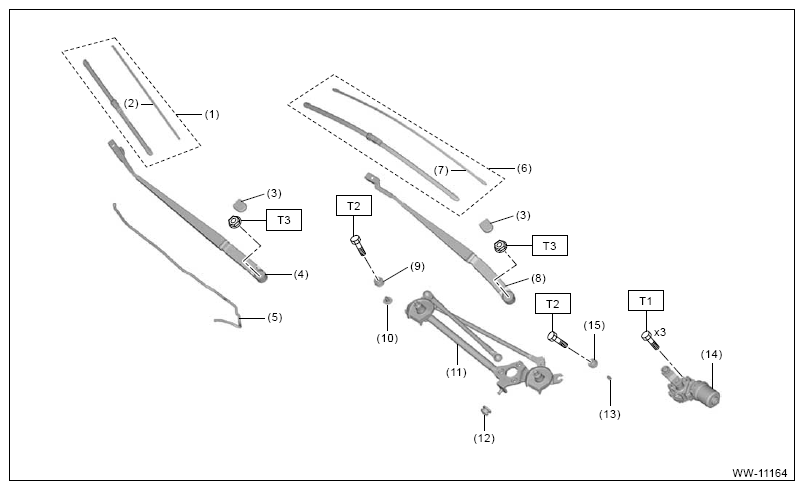

Front Wiper
| (1) | Blade ASSY windshield wiper assistor |
| (2) | Rubber windshield wiper assistor |
| (3) | Cover windshield wiper arm |
| (4) | Arm ASSY windshield wiper assistor |
| (5) | Hose wiper arm washer |
| (6) | Blade ASSY windshield wiper driver |
| (7) | Rubber windshield wiper driver |
| (8) | Arm ASSY windshield wiper driver |
| (9) | Rubber |
| (10) | Collar |
| (11) | Link ASSY windshield wiper |
| (12) | Cushion windshield wiper |
| (13) | Collar |
| (14) | Motor ASSY windshield wiper |
| (15) | Rubber |
Tightening torque: N.M (kgf-m, ft-lb)
T1: 5.4 (0.6, 4.0)
T2: 6 (0.6, 4.4)
T3: 22 (2.2, 16.2)
