General Description
›
Components With Torque Specifications
›

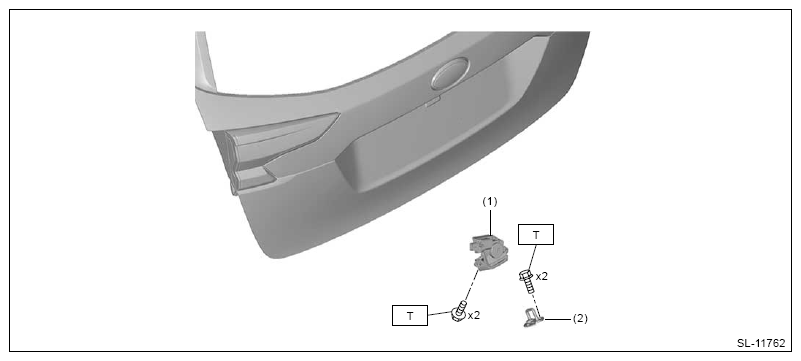

Rear Gate Lock
Rear Gate Lock
Courtesy of SUBARU OF AMERICA, INC.
(1)
Latch and actuator rear gate
(2)
Striker rear gate
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
