Anti-Theft System - Security And Locks
›
General Description
›
Components With Torque Specifications
›
Trunk Lid Lock

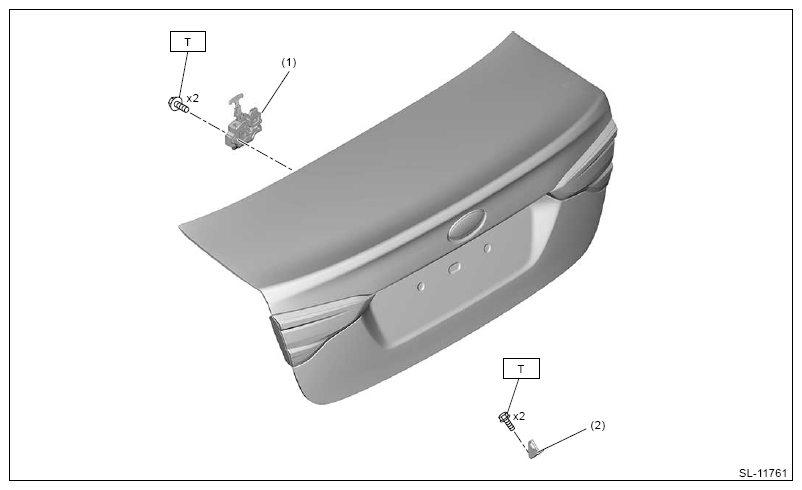

Trunk Lid Lock
Courtesy of SUBARU OF AMERICA, INC.
(1)
Lock ASSY trunk lid
(2)
Striker trunk lid
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
