Sunroof Assembly: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • When removing the clip, use great care not to damage the roof trim.
  1. Remove the lid assembly. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>GLASS LID>REMOVAL .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the trim panel sub assembly. Ref. to EXTERIOR/INTERIOR TRIM>ROOF TRIM>REMOVAL .
  4. Disconnect the harness connector of the motor assembly.
  5. Remove the bolt securing the curtain airbag module.
    CAUTION:
    • Do not remove the clips securing the curtain airbag module. If any of the clips are removed, the curtain airbag module may not deploy properly in collision. If the clip is removed, replace it with a new part.
    • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
    • Be careful not to damage the curtain airbag module during removal.
    • Sedan model
      G13625817Courtesy of SUBARU OF AMERICA, INC.

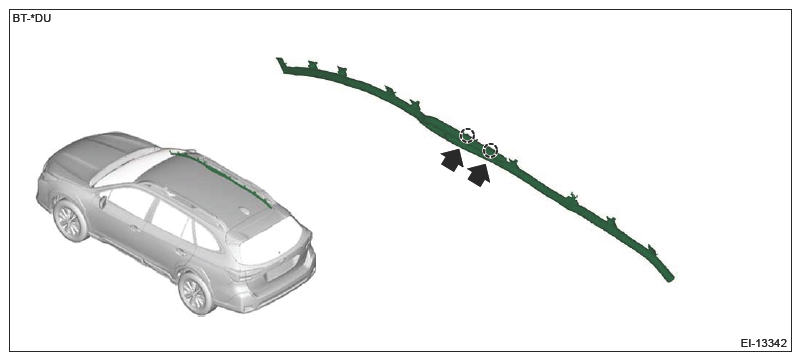

    • OUTBACK model
    G16386672Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the tube drain.
    NOTE: When removing the drain tube completely, perform the step  8.
    G13625819Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the rail assembly.
    1. Remove the bracket sunroof bolts on the right and left sides.
      G13625820Courtesy of SUBARU OF AMERICA, INC.

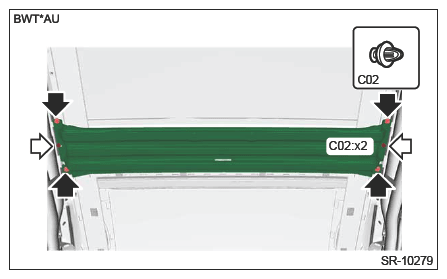

    2. Remove the bolts, release the clips, and then remove the brace COMPL center LWR.
      G16386675Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolts, then remove the rail assembly.
    G13625822Courtesy of SUBARU OF AMERICA, INC.

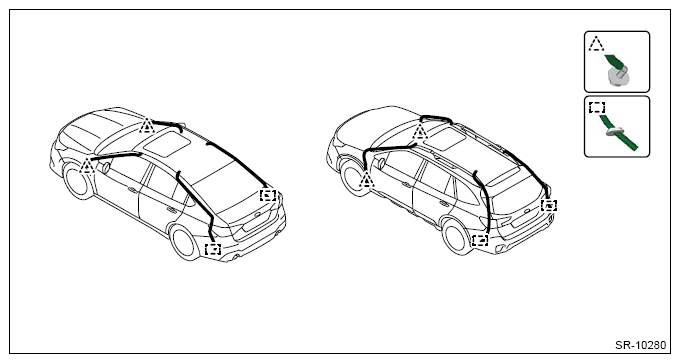

  8. Remove the tube drain if necessary.
    NOTE: For easy replacement work, attach a string when pulling the drain tube.
    1. Remove the cover side sill front Ft and the cover side sill front Rr. Ref. to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
    2. Turn over the insulator toe board and remove the tube drain front.
    3. Remove the mat trunk and the trunk trim panel side. (Sedan model) Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
    4. Remove the mat rear floor side and the spacer rear floor side. (OUTBACK model) Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL>OUTBACK MODEL .
    5. Remove the tube drain rear.
G16386677Courtesy of SUBARU OF AMERICA, INC.
