Engine Starting System & Charging System (2.5L)
›
General Description
›
Components With Torque Specifications
›
Battery Cable Assembly

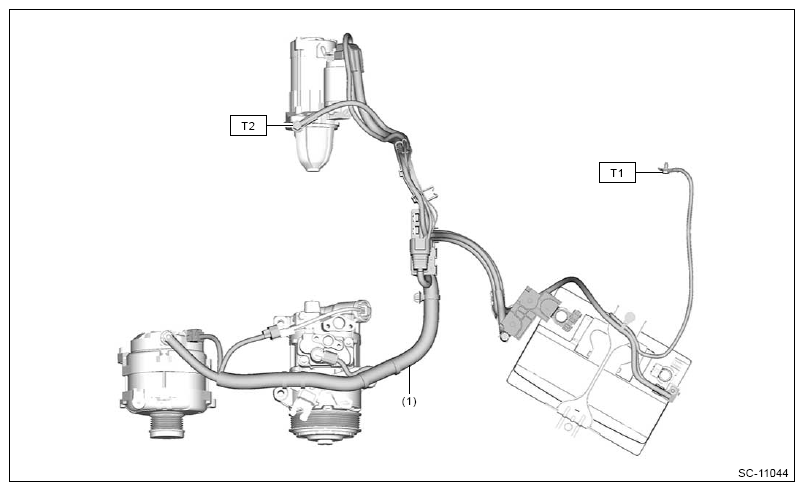

Battery Cable Assembly
Courtesy of SUBARU OF AMERICA, INC.
(1)
Battery cable ASSY
Tightening torque: N.m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 14 (1.4, 10.3)
Courtesy of SUBARU OF AMERICA, INC.
