Air Intake Boot: Removal

  1. Remove the clips, and loosen the clamps.
    G16382772Courtesy of SUBARU OF AMERICA, INC.

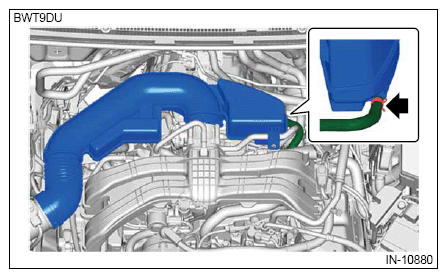

  2. Disconnect the PCV hose and remove the air intake boot.
    G16383227Courtesy of SUBARU OF AMERICA, INC.
