Home › Subaru › 2023 › Outback Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel Injection System (2.5L) › Manifold Absolute Pressure Sensor › Removal

Manifold Absolute Pressure Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

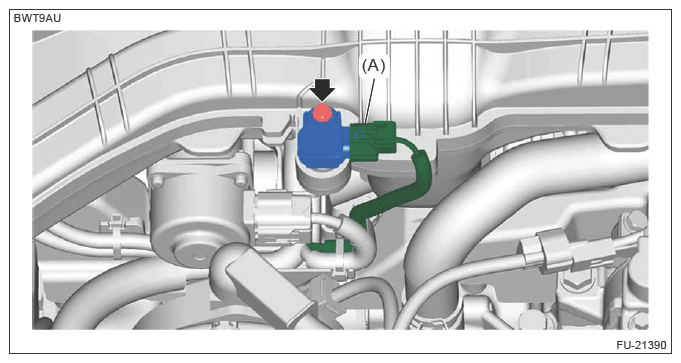

  2. Disconnect the connector (A) and remove the manifold absolute pressure sensor.
    G13618513Courtesy of SUBARU OF AMERICA, INC.
