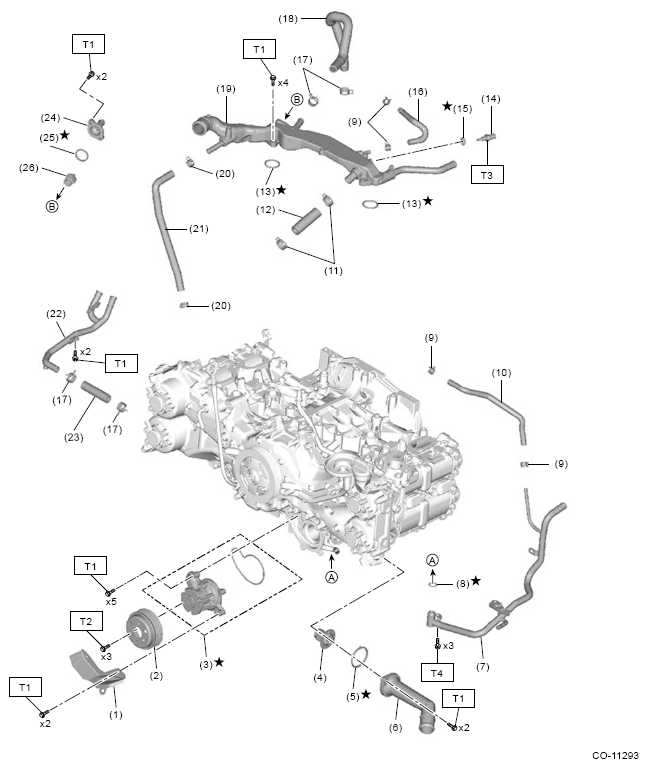

Engine Cooling System
WARNING: This page is about a different variant/trim than selected.
| (1) | Water pump cover |
| (2) | Water pump pulley |
| (3) | Water pump ASSY |
| (4) | Thermostat |
| (5) | Gasket |
| (6) | Thermostat cover |
| (7) | Water pipe LH |
| (8) | O-ring |
| (9) | Clip |
| (10) | Preheater hose |
| (11) | Clip |
| (12) | Water hose |
| (13) | O-ring |
| (14) | Engine coolant temperature sensor |
| (15) | Gasket |
| (16) | Preheater hose |
| (17) | Clip |
| (18) | Water hose |
| (19) | Water tank pipe ASSY |
| (20) | Clip |
| (21) | Water hose |
| (22) | Water pipe RH |
| (23) | Water hose |
| (24) | Thermostat cover |
| (25) | Gasket |
| (26) | Thermostat |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 14 (1.4, 10.3)
T3: 16 (1.6, 11.8)
T4: Ref. to COOLING (H4DOTC)>WATER PIPE>INSTALLATION>WATER PIPE LH .
