Air Intake Boot: Installation

WARNING: This page is about a different variant/trim than selected.

Install the turbo duct bracket, and install the cushion to the turbo duct bracket.
NOTE:
- Align protrusion of the turbo duct bracket to the rotation stopper hole.
- Align the protrusion of the cushion with the cutout portion on the turbo duct bracket.
Tightening torque:

T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Turbo Duct Bracket Bolt And Nut With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Connect the turbo duct and the air intake boot.
NOTE: Align the protrusion on the turbo duct to the cutout portion of the air intake boot.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

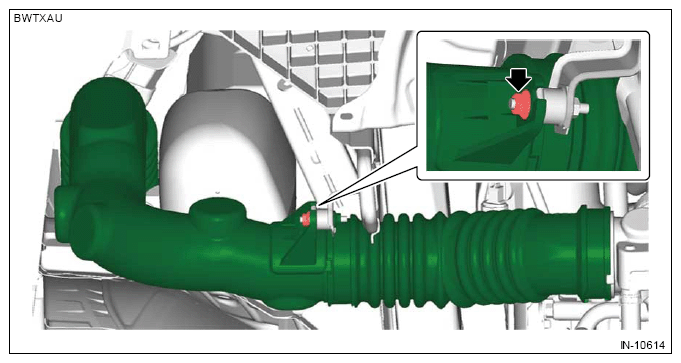

Install the turbo duct and the air intake boot as a single unit.
NOTE: Align the cutout portion on the turbo duct to the protrusion of cushion.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

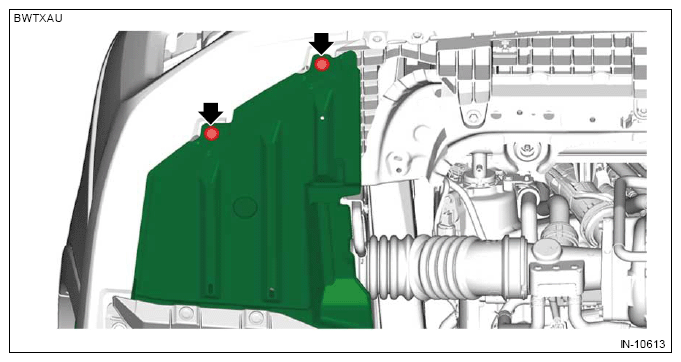

Install the front mud guard RH clip.

Courtesy of SUBARU OF AMERICA, INC.

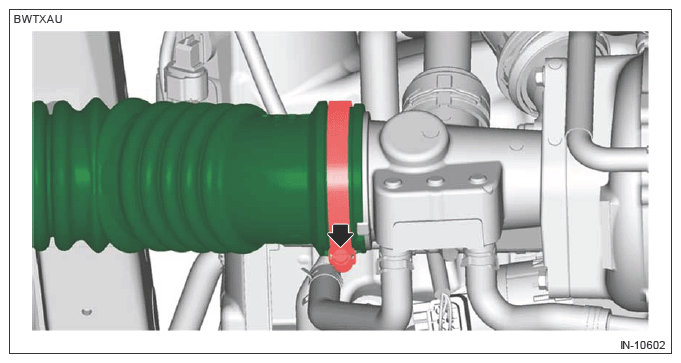

Connect the air intake boot to the intake duct No. 1.
NOTE: Align the cutout portion of the air intake boot to the protrusion on the intake duct No. 1.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .

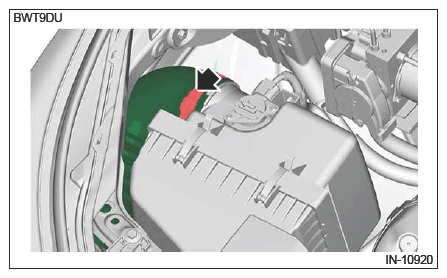

Connect the turbo duct to the air cleaner case (rear).
NOTE: Align the cutout portion on the turbo duct to the protrusion of the air cleaner case (rear).

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
