Brake Fluid
CAUTION:
- If the brake fluid is spilt over exhaust pipe, wipe it off completely with cloth to avoid emitting smoke or causing a fire.
- Always check the level using the specified direction because there is a partition in the reservoir tank.
Check that the brake fluid level is normal from a straight view or within 90° to the right and left forward. If the brake fluid amount is insufficient, carry out a brake line test to identify brake fluid leaks and check the brake operation. After that, refill the brake fluid tank with the specified type of brake fluid. Ref. to BRAKE>BRAKE FLUID>INSPECTION .

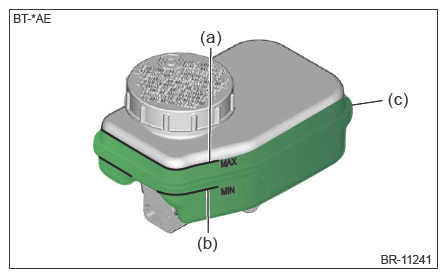

| (a) | MAX. level |
| (b) | MIN. level |
| (c) | Brake fluid |
