General Description
›
Components With Torque Specifications
›
Side Airbag Module

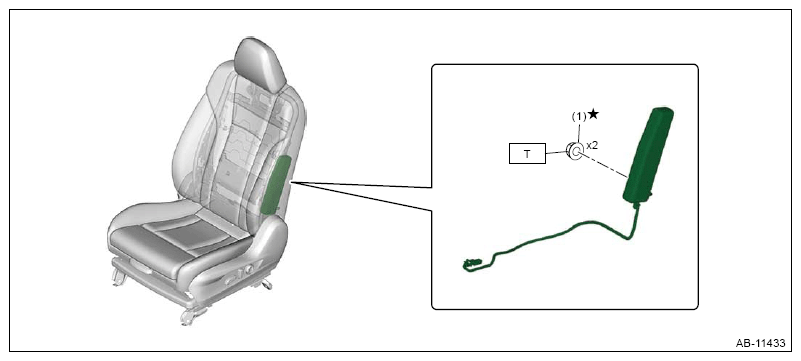

Side Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
(1)
Self-locking nut
Tightening torque: N.m (kgf-m, ft-lb)
T: 6 (0.6, 4.4)
Courtesy of SUBARU OF AMERICA, INC.
