Front impact sensor
CAUTION:
Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct. (When removing the sensor RH)
- H4DO model: Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
- H4DOTC model: Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
- Remove the Front impact sensor.

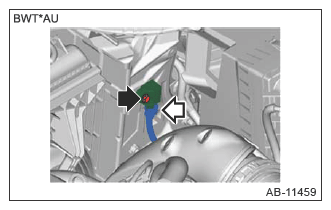

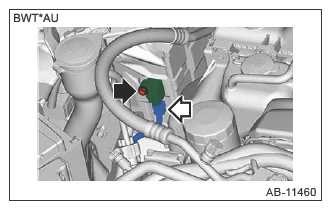

- Remove the bolt, and then remove Front impact sensor.
- Disconnect the Front impact sensor connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR .
