General Description
›
Components With Torque Specifications
›
Transmission Control Module

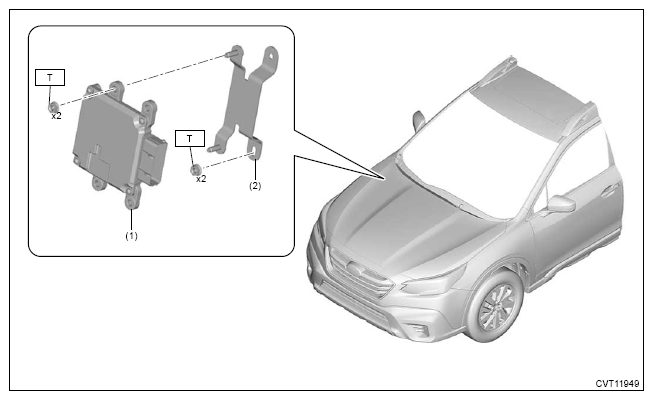

Transmission Control Module
Courtesy of SUBARU OF AMERICA, INC.
(1)
Transmission control module (TCM)
(2)
TCM bracket
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
