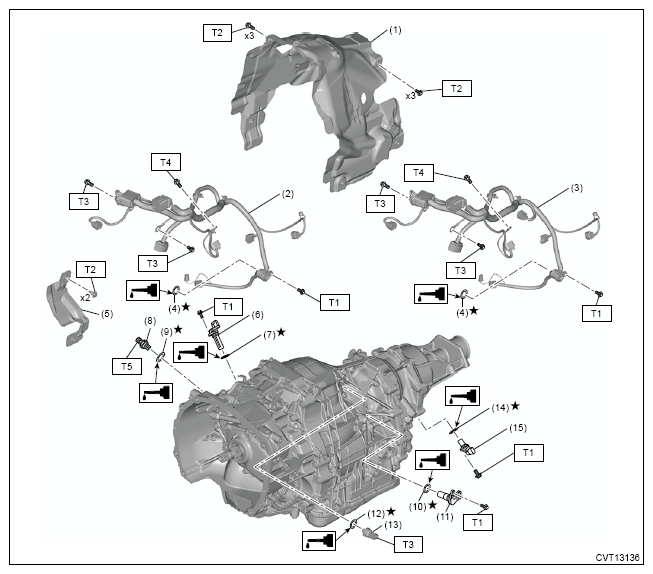

Transmission Harness And Sensor
| (1) | Transmission case cover (rear) |
| (2) | Transmission harness (except for WILDERNESS model) |
| (3) | Transmission harness (WILDERNESS model) |
| (4) | O-ring |
| (5) | Transmission case cover (front) |
| (6) | Primary speed sensor |
| (7) | O-ring |
| (8) | Secondary pressure sensor |
| (9) | O-ring |
| (10) | O-ring |
| (11) | Secondary speed sensor |
| (12) | O-ring |
| (13) | Primary pressure sensor (WILDERNESS model) |
| (14) | O-ring |
| (15) | Front wheel speed sensor |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 8 (0.8 5.9)
T3: 13 (1.3, 9.6)
T4: 16 (1.6, 11.8)
T5: 39 (4.0, 28.8)
