REPROGRAMMING OF THE FORWARD RECOGNITION CAMERA

SERVICE CAMPAIGN BULLETIN

APPLICABILITY

2023 MY Solterra

INTRODUCTION

In the interest of customer satisfaction, Subaru of America, Inc. (Subaru) is initiating a service program to update the forward recognition camera software on certain 2023 model year Solterra vehicles.

REASON FOR THIS SERVICE PROGRAM

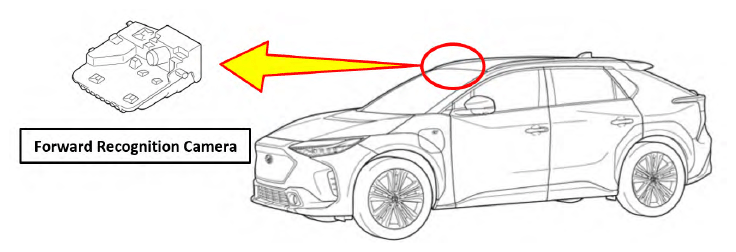

Due to the programming of the software within the forward recognition camera, there is a possibility that under certain conditions, EyeSight® driver assist functions could become inoperative for approximately four seconds before rebooting and becoming operational again.

REMEDY

Subaru retailers will update the forward recognition camera software at no cost to the customer.

AFFECTED VEHICLES

A total of 2,769  U.S. vehicles will be included in this service program as listed below.

Model Year	Carline	Production Date Range
2023	Solterra	March 29, 2022 - December 26, 2022

Not all vehicles in the production range listed above are affected by this service program. Coverage must  be confirmed by using the Vehicle Coverage Inquiry function on subarunet.com prior to repair. This information is now available.

RETAILER RESPONSIBILITY

Any vehicles listed in any recall or campaign that are in retailer stock must be:

• Immediately identified
• Tagged or otherwise marked to prevent their delivery or use prior to repair
• Repaired in accordance with the repair procedures outlined in the bulletin

Retailers are to promptly perform the applicable service procedures, to correct all affected vehicles in their inventory (new, used, demo & SSLP). Additionally, whenever a vehicle subject to this service program is taken into inventory or in for service, necessary steps should be taken to ensure the repair has been made before selling or releasing the vehicle.

OWNER NOTIFICATION

Subaru will notify affected vehicle owners by first class mail on October 5th, 2023.

CUW FILE INFORMATION

File Description	Current Calibration ID	NEW Calibration ID
8646F4206200_8646F4206400.cuw	8646F4206200	8646F4206400
8646F4206300_8646F4206400.cuw	8646F4206300

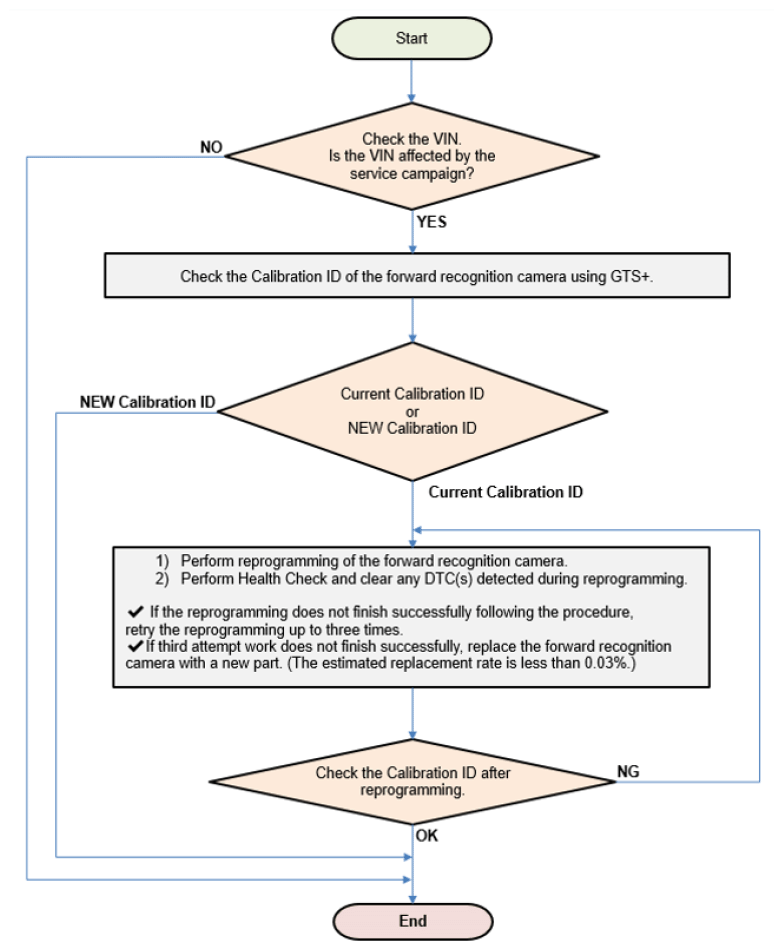

SERVICE PROCEDURE FLOWCHART

SERVICE PROCEDURE INFORMATION

STEP 1:  Turn off vehicle electrical systems to reduce electrical load.

• Turn off all electrical accessories (i.e., climate control, audio-navigation system, etc.).
• Set headlight switch to DRL OFF position.
• Set windshield wiper switch to OFF position.
• Set driver easy exit seat slide function to OFF position.
• Confirm all exterior lighting systems are off.
• Turn off interior lighting systems (confirm that no light comes on even if a door is opened)
• Disable the seat belt warning system (this can be turned off via the buckle switch).
• Turn off the seat heaters and/or ventilation system (only for the vehicle to which it is equipped).
• Disable the rain sensing function (only for the vehicle to which it is equipped).
• Confirm the rear defogger system is off.
• Confirm the steering wheel heater is off (only for the vehicle to which it is equipped).
• Disable any additional/aftermarket accessories (security system, etc.).

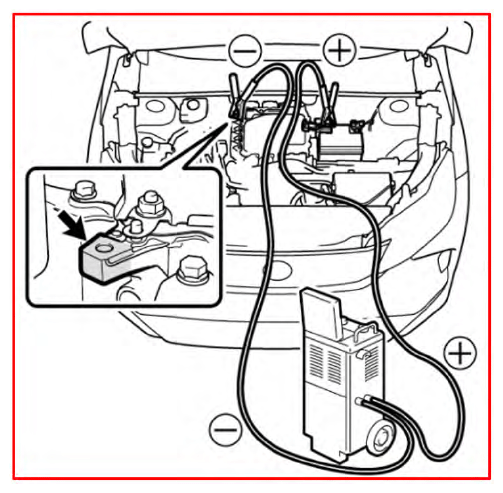

STEP 2:  Inspect vehicle 12v auxiliary battery condition and connect power supply.

Push the power switch without  pressing brake pedal (Power-ON), wait at least 1 minute then confirm battery voltage is at least 12.0 Volts. If the battery is below 12.0 Volts, charge the battery before performing reprogramming. Subaru of America, Inc. (SOA) highly recommends utilizing the Subaru Midtronics DCA8000 Dynamic Diagnostic Charging System. Once the DCA8000 is connected and the battery is fully charged, restart the charger and select Power Supply Mode. The battery voltage will be stabilized and ready for reprogramming.

BATTERY CHARGER NOTES

• For instructions on using the Power Supply Mode, reference the applicable User Manual for the Midtronics DCA-8000 Dynamic Diagnostic Charging on STIS.
• Select the correct battery type (Enhanced Flooded, Flooded, Gel, AGM, or AGM Spiral).
• Input the CCA which matches the vehicle's battery.
• If using a DCA-8000 Dynamic Diagnostic Charging System, set the power supply voltage to 13.5 Volts.
• DO NOT connect the GTS+ until the Power Supply mode function has completed its battery test mode and the Charging Voltage has dropped to and shows a steady 13.5 Volts on the display.
• Once Power Supply Mode reaches a steady 13.5 Volts, connect the GTS+ to the OBD connector and proceed with initiating the normal reprogramming process.
• Amperage will fluctuate based upon the vehicle's demand for power.
  NOTE: If the voltage rises beyond 14 Volts while programming is in process, the procedure will abort. This can indicate a need to test or charge the vehicle battery before any further attempt at programming is made.
• ALWAYS set the power supply voltage to 13.5 Volts when using Power Supply Mode. NEVER turn the ignition switch on when charging at voltages 15 Volts or higher.
• Control module failures resulting from battery discharge during reprogramming are not a matter for warranty. Should any DTCs reset after the reprogramming update is performed, diagnose per the procedure outlined in the applicable Service Manual.

REMINDER:  If the DCA-8000 indicates the vehicle's battery must be charged, charge the battery fully before proceeding to reprogram the vehicle while using the Power Supply Mode.

STEP 3:  Stabilize the power supply to Global TechStream Plus (GTS+).

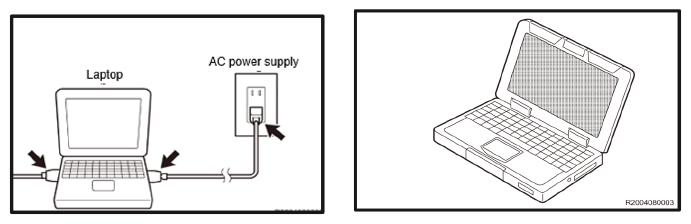

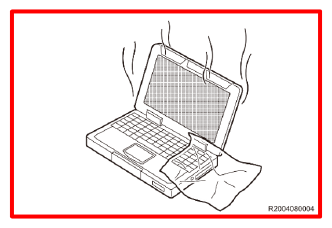

1. ALWAYS  connect the GTS laptop to an external AC power supply.
2. Turn off the screen saver and power saving mode of the laptop for continuous power supply to the HDD/SSD.

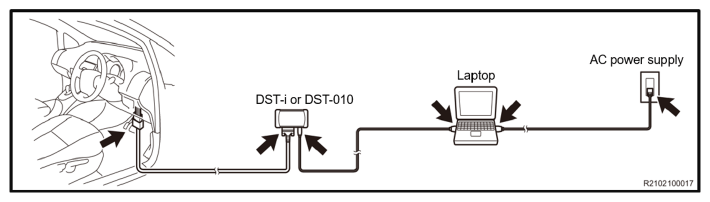

STEP 4:  Secure the connection the of cables.

Confirm the power switch is in the OFF position and connect the laptop to the vehicle.

STEP 5:  Starting the GTS+ application.

1. Click the GTS+ icon to start the GTS+ application.
2. SSM will automatically close and the GTS+ browser will open. Set the GTS+ application region to "United States" and set the lower box to "USA" then click the Server Login link.

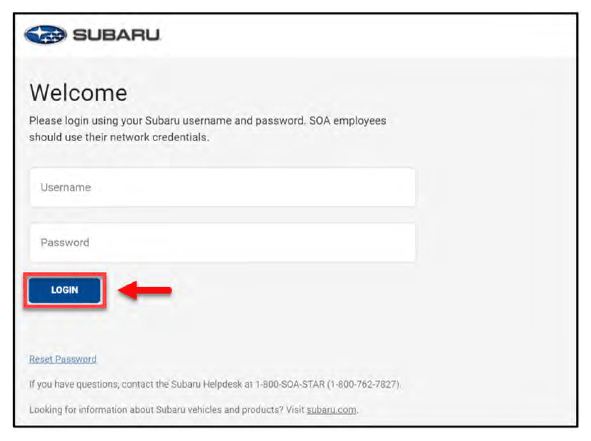

   NOTE: In some instances, a user may have logged in previously. In these cases, if the PC has not been restarted, the screen bellow my appear when clicking on the GTS+ icon (Step 5-A). This is normal operation. Click the "GuestUser" link to directly login to GTS+.
3. A second pop-up window browser will open. Right click on the white area of the window and select "Translate to English."

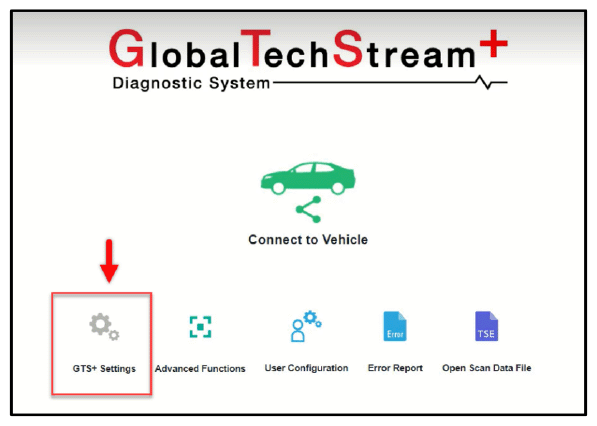

4. Turn the power switch to the ON position WITHOUT  depressing the brake pedal. Click the "GTS+ Settings" button.
5. In the lower portion of the GTS+ Settings page, select the appropriate Vehicle Interface Module (VIM) such as DTS-i or DST-010. Set the "Vehicle Area" selection to North America. Click the arrow in the right corner when complete.
6. Click the "Connect to Vehicle" button. Confirm the target VIN information and continue by clicking the "Next" button.

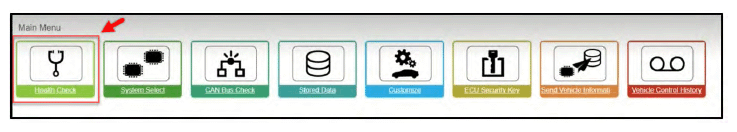

STEP 6:  Click "Health Check" button located in the Main Menu.

STEP 7:  Allow time for the Health Check to start.

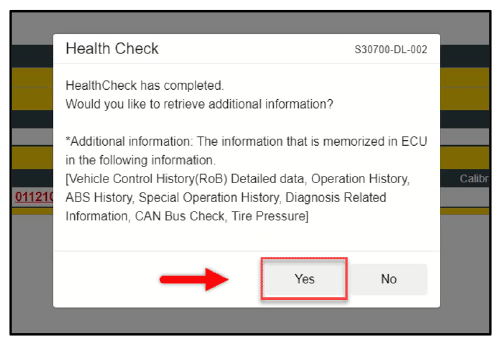

STEP 8:  While the Health Check is being performed, a pop-up will be displayed asking if you would like additional information retrieved. Click the "Yes" button to continue.

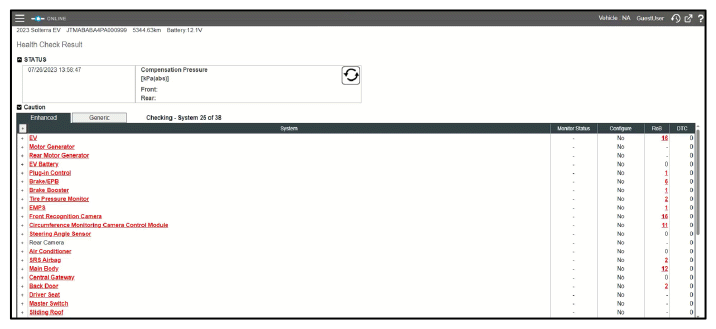

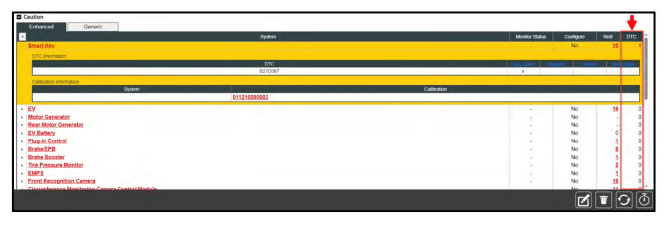

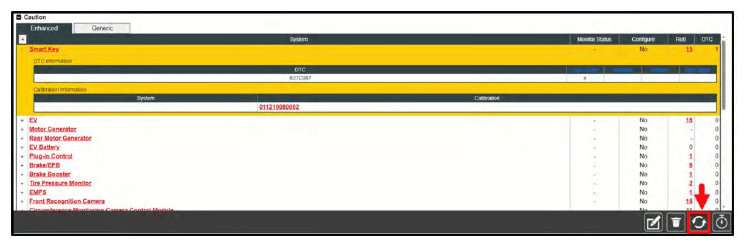

STEP 9:  Once the Health Check is completed, check the results for any stored DTC(s).

Are any DTC(s) stored?

YES:  Proceed to Step 10.

NO:  Proceed to Step 11.

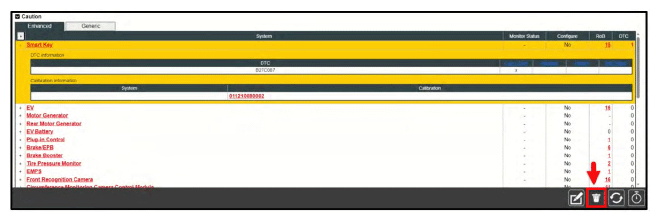

STEP 10:  Clear all DTC(s) by clicking the "Erase" button.

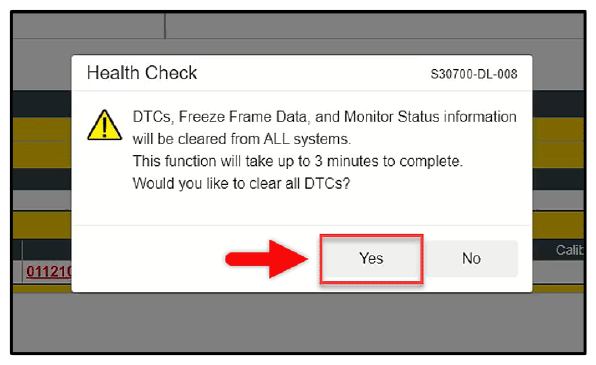

A pop-up will display reminding all Freeze Frame and Monitor Data will be cleared. Click the "Yes" button to continue.

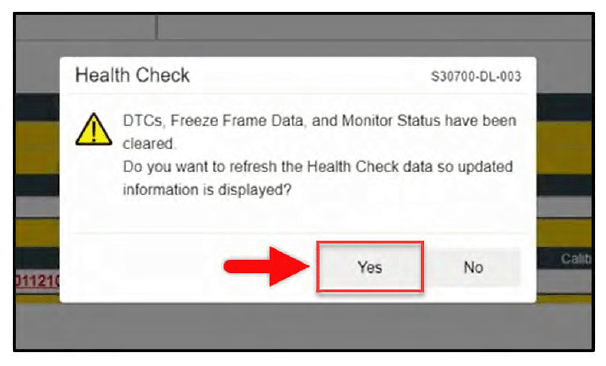

Once the clearing is complete, a second pop-up will display asking to refresh the Health Check to the updated status. Click the "Yes" button to continue. Proceed to Step 11 when no DTC(s) are detected.

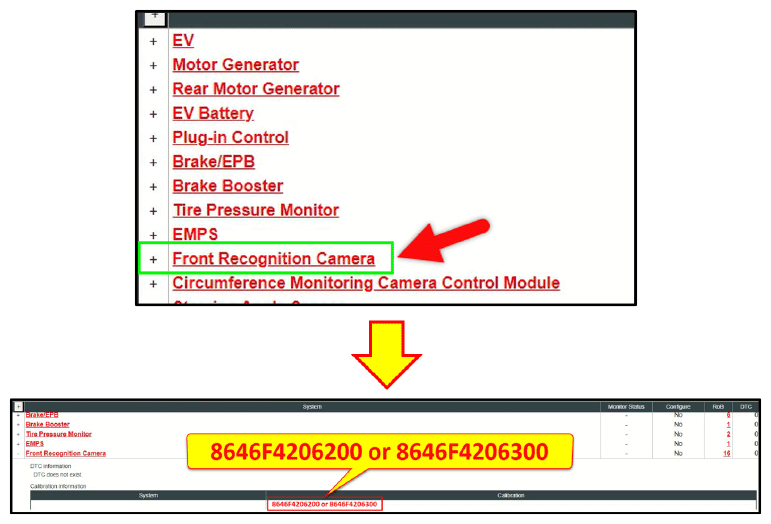

STEP 11:  Click on the "Plus" symbol next to Front Recognition Camera to expand the system information. Confirm the Forward Recognition Camera calibration ID displayed is 8648F4206200 or 8646F4206300. In a rare case of 8646F4206400 being displayed, there would be no need for further action.

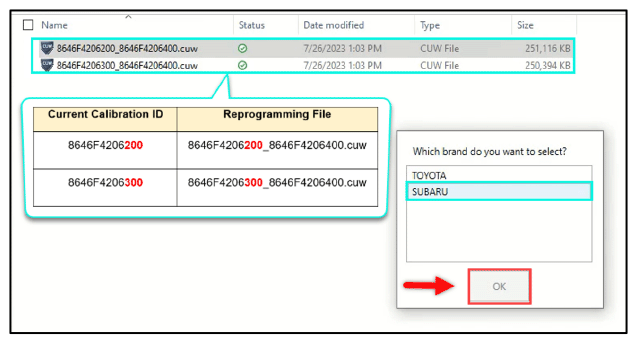

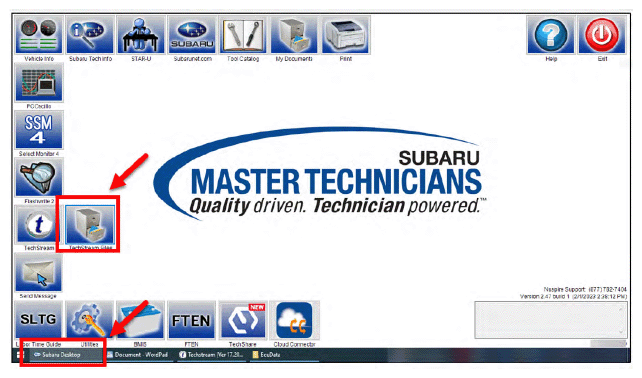

STEP 12:  Prepare the Forward Recognition Camera CUW file. Select the Subaru Desktop from the lower taskbar. Select The TechStream Files icon. Open the ECU Data folder.

STEP 13:  Double-click the applicable CUW file icon. A pop-up will display requesting a manufacturer to be selected. Select "Subaru" and click the "OK" button to continue.

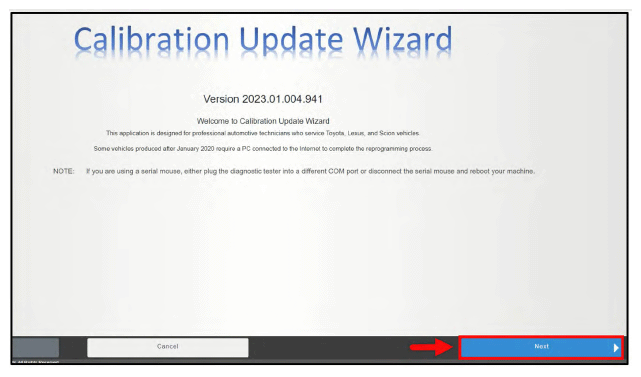

STEP 14:  After double-clicking the file icon, the Calibration Update Wizard program is launched, and a new window will appear. Select the "Next" button to continue.

STEP 15:  Confirm the pass-through device currently being used. Select the "Next" button to continue.

STEP 17:  The Calibration Selection Confirmation window will appear. Confirm the applicable Current Cal ID and the New Cal ID. Click the "Next" button to continue.

STEP 18:  Review the CAUTIONS listed. Follow the on-screen instruction, turn the power switch to the OFF position. Select the "Start" to continue.

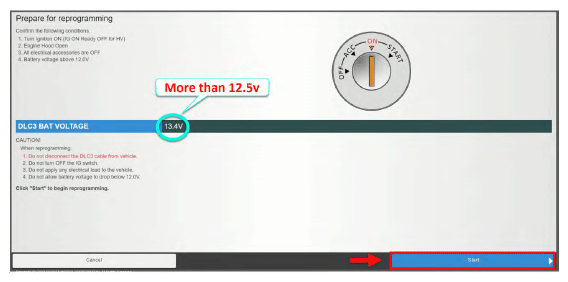

STEP 19:  Review the CAUTIONS listed. Follow the on-screen instruction, turn the power switch to the ON position WITHOUT  depressing the brake pedal. Confirm the 12v auxiliary battery voltage is more than 12.5 volts. Select the "Start" to begin the reprogramming process.

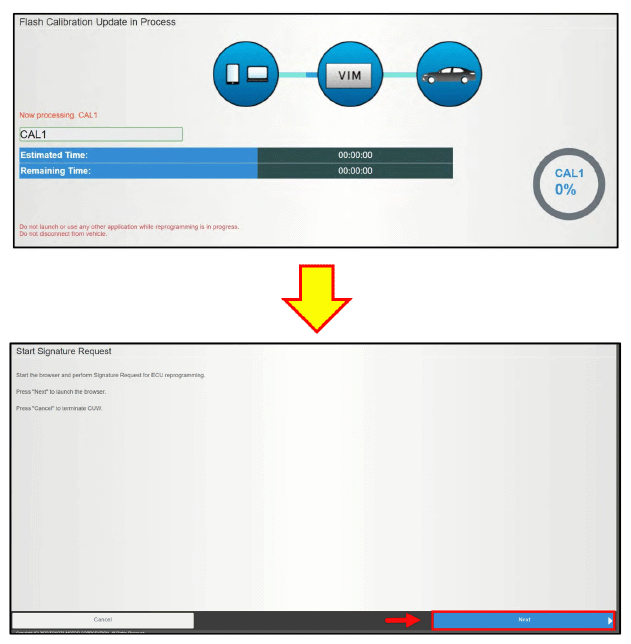

STEP 20:  Once the "Flash Calibration Update" window is shown, allow the "Toyota Service Information" browser to be displayed. Select the "Next" button to continue.

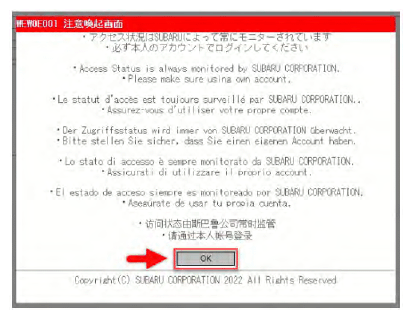

STEP 21:  Once the browser is started, a pop-up will display. Click the "OK" button to continue.

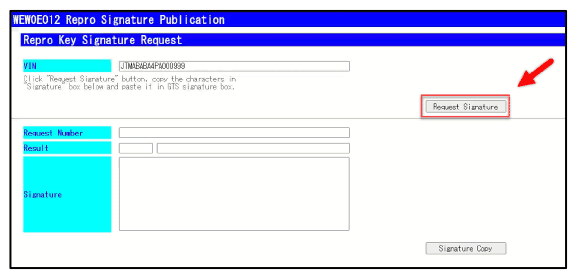

STEP 22:  Select the "Request Signature" button. This will populate in the lower window.

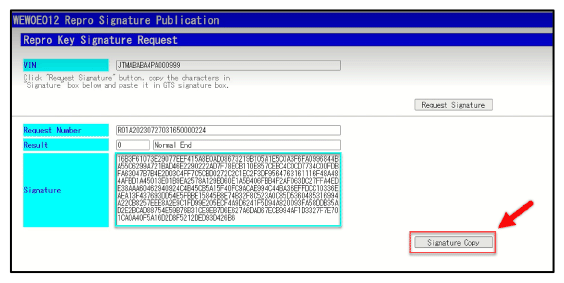

STEP 23:  Select the "Copy Signature" button then minimize the window.

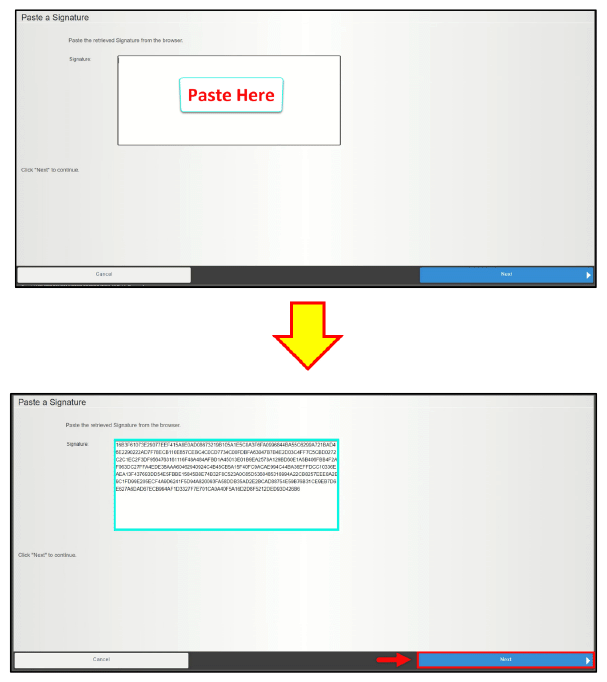

STEP 24:  Return to "Calibration Update Wizard" display. Paste the signature using the right click method or using Ctrl+V on the keyboard. Once the signature is successfully pasted, click the "Next" button to continue.

STEP 25:  While the vehicle is reprogramming, the progress window is displayed. ALWAYS  remain near the vehicle during reprogramming in order to monitor the progress.

STEP 26:  When the reprogramming procedure is successfully completed, the "Finish" window will be displayed. Press any key to continue. IMPORTANT NOTE:  If the reprogramming procedure is unsuccessful, an error window is displayed. If no error window is displayed, proceed to Step 27.

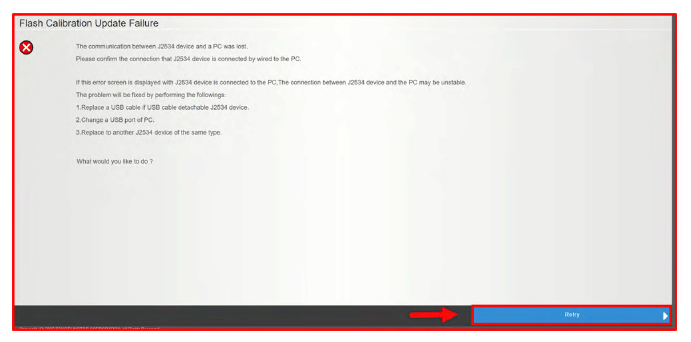

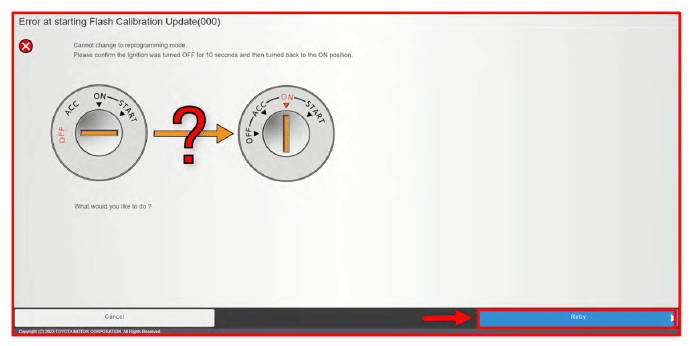

IMPORTANT NOTE:  If the reprogramming procedure is unsuccessful, an error window is displayed. If no error window is displayed, proceed to Step 27.

• DO NOT press the cancel button.
• DO NOT close the CUW+ window.

Attempt to restart the reprogramming procedure by clicking the "Retry" button AFTER  the following prerequisites are met:

• Inspect the USB cables and connections and confirm they are in working condition.
• Confirm the 12V battery has sufficient charge.
• Confirm the battery charger is operating as desired.
• Confirm the battery cables are securely connected.

Cycle the power switch as per the GTS+ and click the "Retry" button to continue.

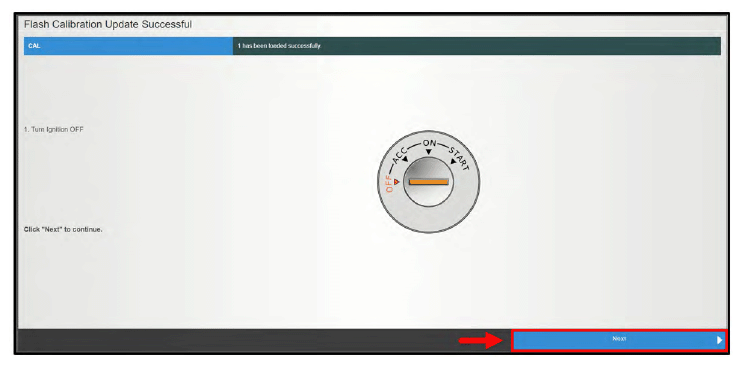

STEP 27:  The "Flash Calibration Update Successful" window will display. Turn the power switch to the OFF position. Click the "Next" button to continue.

STEP 28:  Follow the on-screen instruction. Turn the power switch to the ON position. Select the "Next" button to continue.

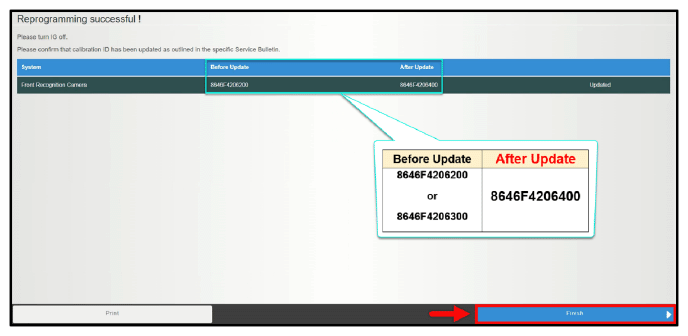

STEP 27:  Confirm the "AFTER UPDATE" calibration ID is 8646F4206400. Click the "Finish" button.

STEP 27:  Return to the GTS+ window. Perform the "Health Check" a second time by selecting the button in the lower right corner of the Stared Data tab window.

While the Health Check is being performed, a pop-up will be displayed asking if you would like additional information retrieved. Click the "No" button to continue.

STEP 28:  Clear any DTC(s) that may have been detected during reprogramming. If no DTC(s) are detected, the procedure is complete.

SERVICE PROGRAM IDENTIFICATION LABEL

Type or print the necessary information on a Campaign Identification Label. The completed label should be attached to the vehicle's left side radiator support bracket located behind the driver side headlamp. Additional labels are available through normal parts ordering channels. The part number is MSA6P1302, which comes as one sheet of 20 labels.

Part Number	Applicability	Description	Order Quantity
MSA6P1302	All Models	Campaign Completion Labels (contains one sheet of 20 labels)	1

CLAIM REIMBURSEMENT AND ENTRY PROCEDURES

Credit to perform this service program will be based on properly completed repair order information. Retailers may submit claims through Subarunet.com.

Labor Description	Labor Operation #	Labor Time	Recall Code
FORWARD CAMERA SOFTWARE INSPECTION ONLY	A167-730	0.2H	WRG-23
FORWARD CAMERA REPROGRAMMING	A167-731	0.8h

IMPORTANT REMINDERS:

• SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.

OWNER NOTIFICATION LETTER

Dear Subaru Owner:

We would like to thank you for your selection of a Subaru vehicle. We take pride in our products and are committed to your continued satisfaction.

Subaru of America, Inc. (Subaru) is initiating a service program to update the forward recognition camera software on certain 2023 model year Solterra vehicles. You have received this notice because our records indicate that you currently own one of these vehicles.

REASON FOR THIS SERVICE PROGRAM

Due to the programming of the software within the forward recognition camera, there is a possibility that under certain conditions, EyeSight® driver assist  functions could become inoperative for approximately four seconds before rebooting and becoming operational again.

REPAIR

Your Subaru retailer (dealer) will update the forward recognition camera software at no cost to you.

WHAT YOU SHOULD DO

Please contact your Subaru retailer for an appointment to have this repair performed.

HOW LONG WILL THE REPAIR TAKE?

The actual time to perform this repair is less than one hour. Your retailer can provide you with a better estimate of the overall time for this service visit, as it may be necessary to make your vehicle available for a longer period of time for scheduling purposes.

CHANGED YOUR ADDRESS OR SOLD YOUR SUBARU?

If you have moved or sold your vehicle, please go to https://www.subaru.com/support/customersupport. html to send us your information.

IF YOU NEED FURTHER ASSISTANCE:

To locate the nearest Subaru retailer, you can access our website at www.subaru.com and select 'Find a Retailer.'

For additional information, please go to: http://www.wrg23.service-campaign.com.

If you need additional assistance, please contact us directly:

• By e-mail: Go to www.subaru.com, Customer Support and select 'Contact Us'
• By telephone: 1-844-373-6614

  Monday through Friday between 8:00 a.m. and 7:00 p.m. ET

• By U.S. Postal mail: Write us at Subaru of America, Inc.,

Attn: Customer Advocacy Department,

P.O. Box 9103, Camden, NJ 08101-9877

Please contact us immediately if the Subaru retailer fails or is unable to make the necessary repairs free of charge.

Your continued satisfaction with your Subaru is important to us. Please understand that we have taken this action in the interest of your vehicle's proper operation. We sincerely apologize for any inconvenience this matter may cause and urge you to schedule an appointment as soon as possible to have this repair performed.

Sincerely,

Subaru of America, Inc.
