Scavenge Pump

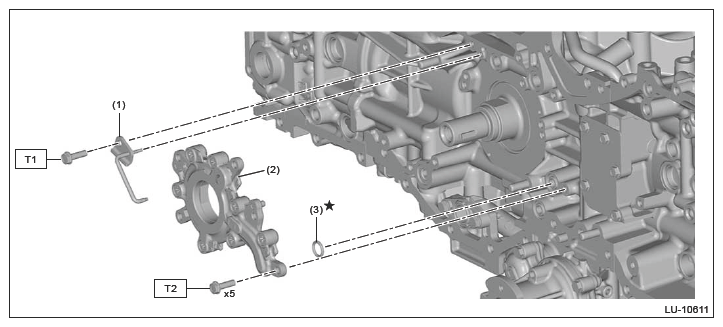

Fig 1: Scavenge Pump Components Location

G16385145

Courtesy of SUBA

(1)	Oil jet
(2)	Scavenge pump
(3)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Ref. to LUBRICATION (H4DOTC)>SCAVENGE PUMP>INSTALLATION .
