Center Differential Carrier: Installation

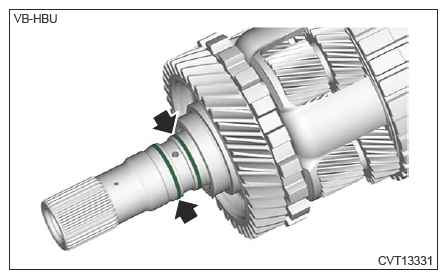

- Install a new seal ring.NOTE:
- Do not stretch the seal ring excessively.
- Apply CVTF to the seal rings.

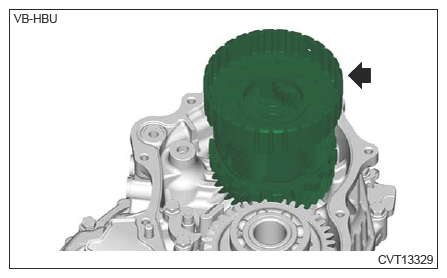

- Install the center differential carrier.
- Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
