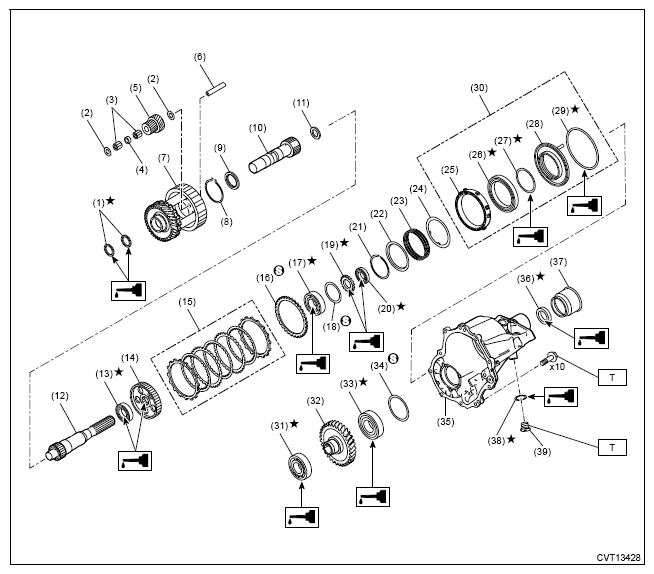

Transfer And Extension Case
| (1) | Seal ring |
| (2) | Washer |
| (3) | Needle bearing |
| (4) | Spacer |
| (5) | Pinion gear |
| (6) | Pinion shaft |
| (7) | Center differential carrier |
| (8) | Snap ring |
| (9) | Thrust bearing |
| (10) | Intermediate shaft |
| (11) | Thrust bearing |
| (12) | Rear drive shaft |
| (13) | Ball bearing (front side) |
| (14) | Clutch hub |
| (15) | Transfer clutch plate set |
| (16) | Driven plate No. 3 |
| (17) | Ball bearing (rear side (large)) |
| (18) | Rear drive shaft shim |
| (19) | Revolution gear |
| (20) | Ball bearing (rear side (small)) |
| (21) | Snap ring |
| (22) | Clutch spring retainer |
| (23) | Return spring |
| (24) | Spring retainer |
| (25) | Pressure plate |
| (26) | Ball bearing |
| (27) | O-ring |
| (28) | Transfer clutch piston |
| (29) | D-ring |
| (30) | Transfer clutch piston ASSY |
| (31) | Ball bearing (intermediate case side) |
| (32) | Transfer reduction driven gear |
| (33) | Ball bearing (extension case) side) |
| (34) | Transfer reduction driven gear shim |
| (35) | Extension case |
| (36) | Oil seal |
| (37) | Dust cover |
| (38) | O-ring |
| (39) | Plug |
Tightening torque: Nm (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
