Pitching Stopper

  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  2. Remove the air breather hose from the air breather hose bracket.
    G14611075Courtesy of SUBARU OF AMERICA, INC.

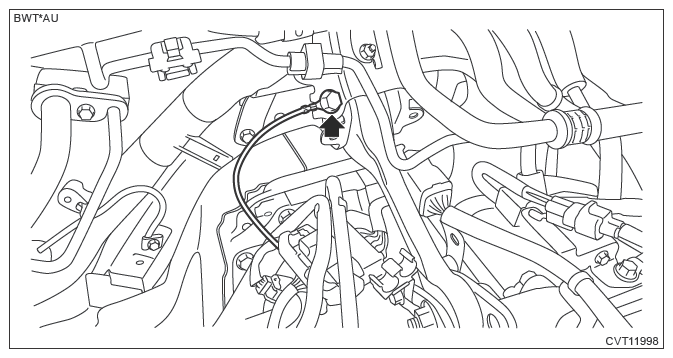

  3. Disconnect the ground cord.
    G13621923Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the pitching stopper.
    G13200014Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the pitching stopper bracket.
    NOTE: Perform this procedure only when required.
    1. Remove the bolts which secure the CVTF cooler pipe No. 1.
      G13621888Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the pitching stopper bracket.
      G13621925Courtesy of SUBARU OF AMERICA, INC.
