General Description
›
Components With Torque Specifications
›
CENTRAL Gateway CM
CENTRAL Gateway CM

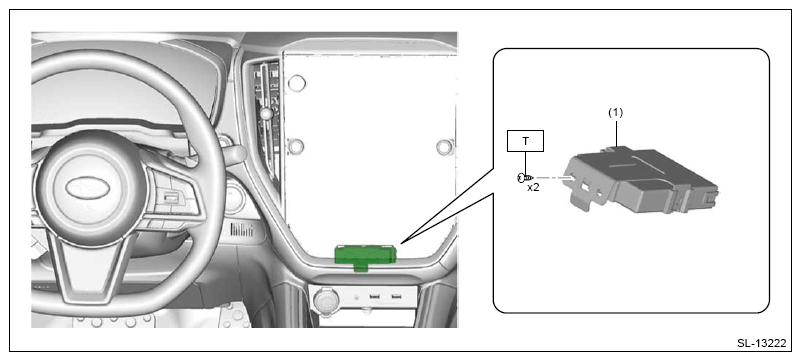

Fig 1: Central Gateway CM Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Central gateway control module
Tightening torque: N.m (kgf-m, ft-lb)
T: 1.8 (0.2, 1.3)
Courtesy of SUBARU OF AMERICA, INC.
