Rear Seat

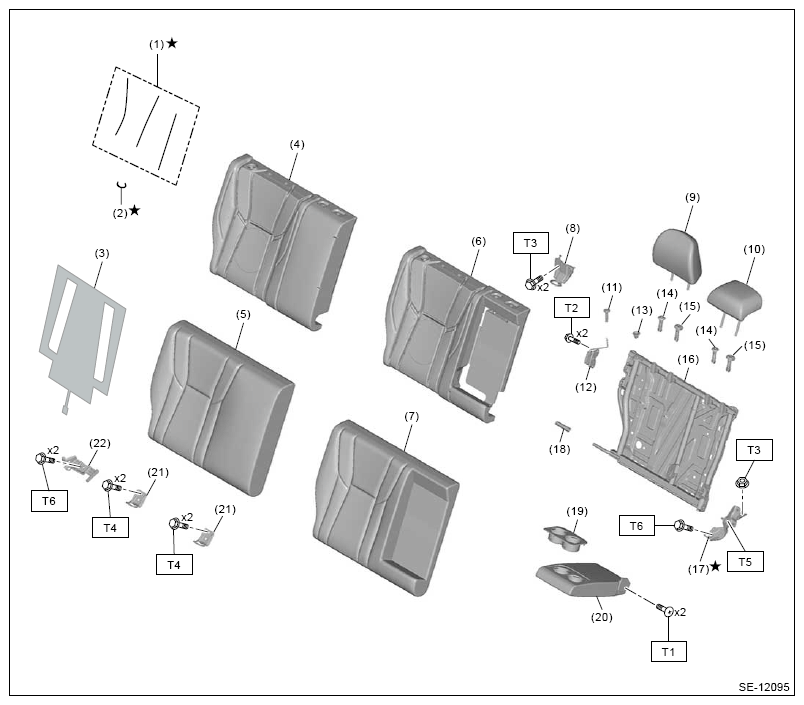

Fig 1: Rear Seat Components Location (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

(1)

Wire set backrest rear seat

(2)

Hog ring⁽¹⁾

(3)

Seat heater unit rear backrest (model with rear seat heater)

(4)

Cover backrest rear seat RH (model without armrest)

(5)

Seat pad ASSY rear backrest RH (model without armrest)

(6)

Cover backrest rear seat RH (model with armrest)

(7)

Seat pad ASSY rear backrest RH (model with armrest)

(8)

Striker backrest RH

(9)

Headrest ASSY rear

(10)

Headrest ASSY rear CTR

(11)

Knob rear backrest

(12)

Lock ASSY RH

(13)

Knob guide

(14)

Bushing headrest free

(15)

Bushing headrest lock

(16)

Frame ASSY rear backrest RH

(17)

Hinge ASSY rear seat

(18)

Bushing side hinge

(19)

Cup holder rear seat

(20)

Armrest ASSY rear seat

(21)

Plate anchor LWR

(22)

Hook BRKT rear seat cushion RH

⁽¹⁾	20 pieces for model without armrest, and 22 pieces for model with armrest

Tightening torque: N.m (kgf-m, ft-lb)

T1: 14.6 (1.5, 10.8)

T3: 18 (1.8, 13.3)

T3: 24.5 (2.5, 18.1)

T4: 25 (2.5, 18.4)

T5: 29 (3.0, 21.4)

T6: 33 (3.4, 24.3)

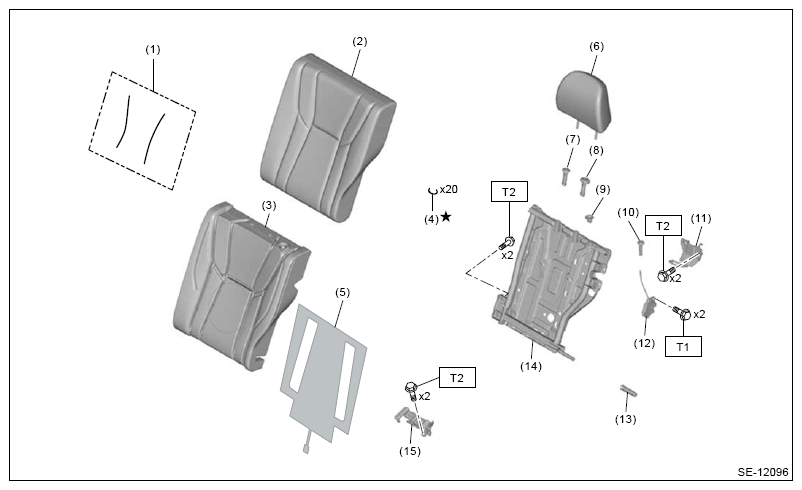

Fig 2: Rear Seat Components Location (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Wire set backrest rear seat
(2)	Cover backrest rear seat LH
(3)	Seat pad ASSY rear backrest LH
(4)	Hog ring
(5)	Seat heater unit rear backrest (model with rear seat heater)
(6)	Headrest ASSY rear
(7)	Bushing headrest free
(8)	Bushing headrest lock
(9)	Knob guide
(10)	Knob rear backrest
(11)	Striker backrest LH
(12)	Lock ASSY LH
(13)	Bushing side hinge
(14)	Frame ASSY rear backrest LH
(15)	Hook BRKT rear seat cushion LH

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

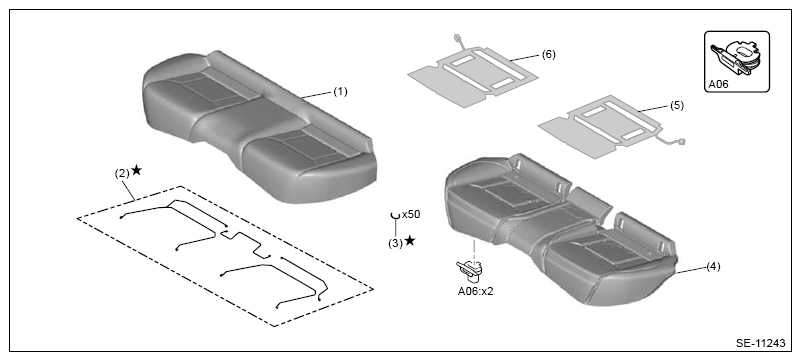

Fig 3: Rear Seat Components Location (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cover cushion rear seat
(2)	Wire set cushion rear seat
(3)	Hog ring
(4)	Pad & frame ASSY rear cushion
(5)	Seat heater unit rear cushion LH (model with rear seat heater)
(6)	Seat heater unit rear cushion RH (model with rear seat heater)

NOTE: The seating sensor mat is integrated into the pad & frame assembly rear cushion.
