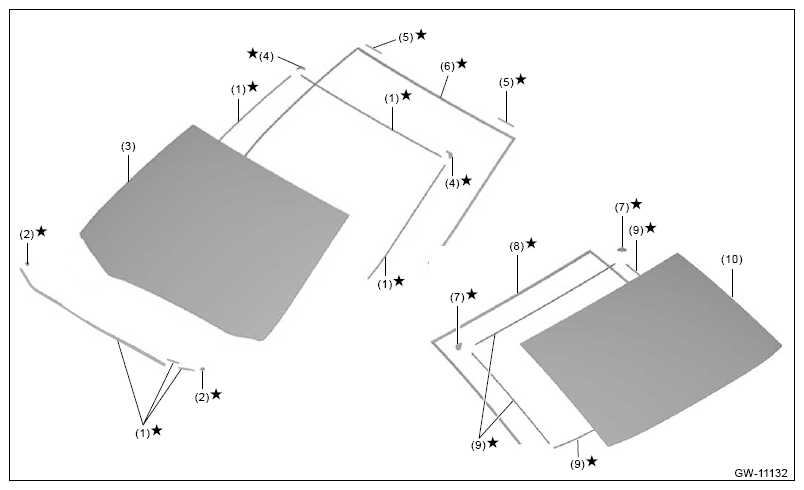

Fixed Glass
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Dam rubber windshield |
| (2) |
Seal lower |
| (3) |
Glass windshield |
| (4) |
Locating pin windshield |
| (5) |
Seal upper |
| (6) |
Molding windshield |
| (7) |
Locating pin rear window |
| (8) |
Molding rear window |
| (9) |
Dam rubber rear window |
| (10) |
Glass rear window |
NOTE:
Inner mirror base cannot be removed from the windshield glass.
