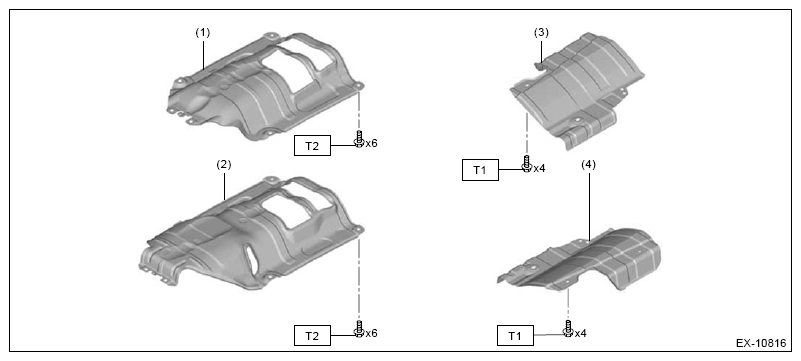

Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Center exhaust cover (CVT model) |
| (2) |
Center exhaust cover (MT model) |
| (3) |
Rear exhaust cover RH |
| (4) |
Rear exhaust cover LH |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 10 (1.0, 7.4)
T2: 18 (1.8, 13.3)
