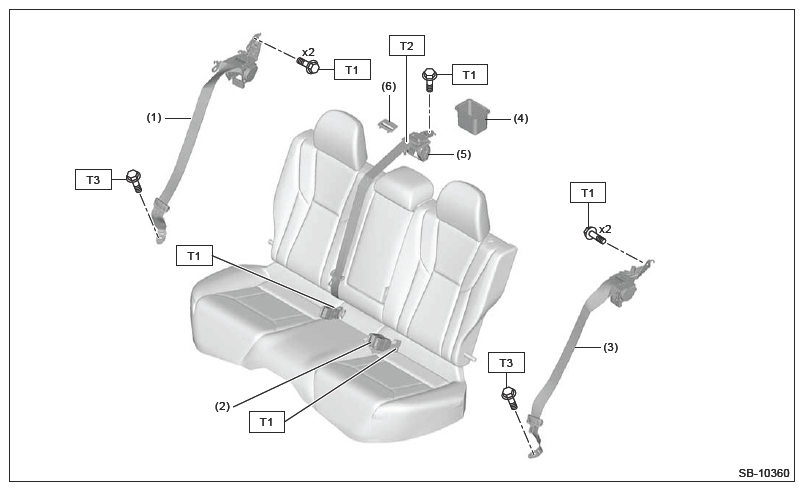

Rear Seat Belt
| (1) | Belt ASSY rear OUT RH |
| (2) | Belt ASSY rear INN center LH |
| (3) | Belt ASSY rear OUT LH |
| (4) | Cover CTR ELR |
| (5) | Belt ASSY rear OUT CTR |
| (6) | Belt cover |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 30 (3.1, 22.1)
T2: 53 (5.4, 39.1)
T3: . Ref. to SEAT BELT SYSTEM>REAR SEAT BELT>INSTALLATION>BELT ASSEMBLY REAR OUT RH AND LH .
