Rear Suspension System: Stabilizer: Removal: Stabilizer

  1. Disconnect the stabilizer link rear (upper part). Ref. to REAR SUSPENSION>STABILIZER>REMOVAL>STABILIZER LINK .
  2. Remove the stabilizer rear.

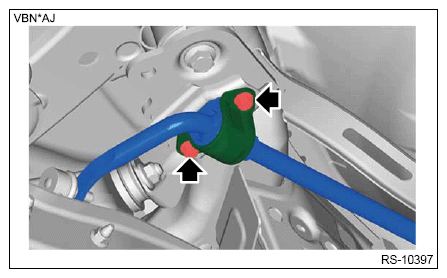

    1. Remove the bolts and remove the clamp stabilizer.
    2. Remove the stabilizer rear.
    G14601811Courtesy of SUBARU OF AMERICA, INC.
