Crossmember Support: Removal

1. Remove the under guard front. (When the crossmember support front is removed) Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

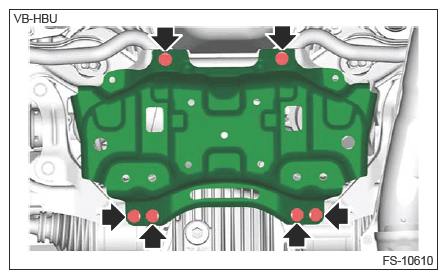

2. Remove the bolt, and remove the crossmember support rear.

   Courtesy of SUBARU OF AMERICA, INC.

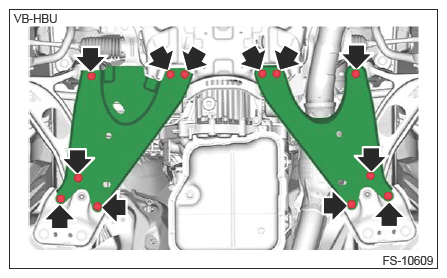

3. Remove the bolt, and remove the crossmember support front.

Courtesy of SUBARU OF AMERICA, INC.
