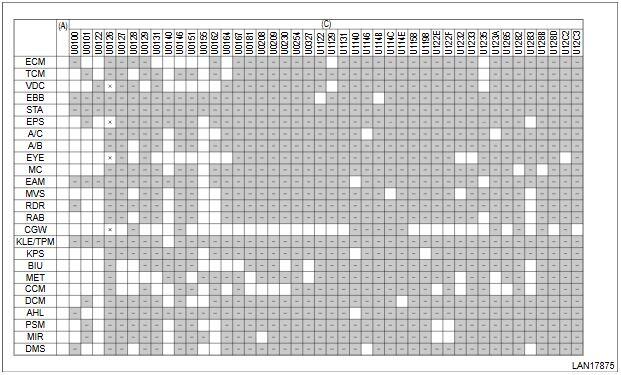

Example Of DTC Data Not Received

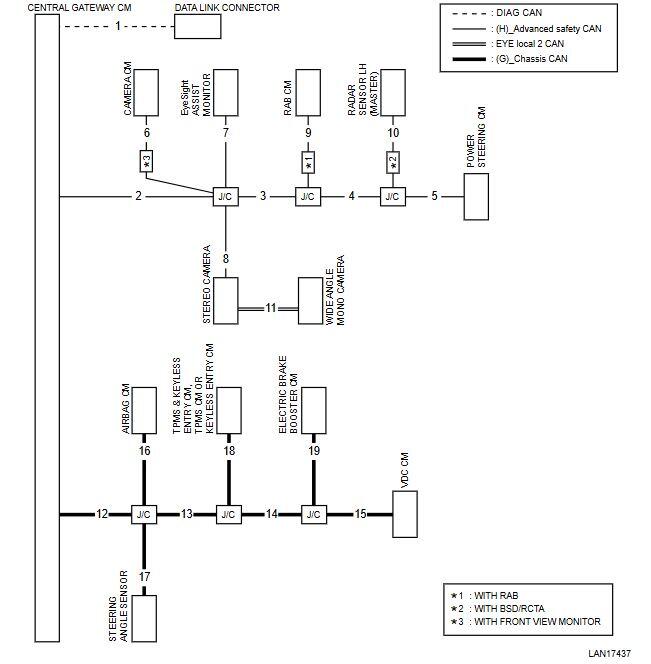

• DIAG CAN, (H)_Advanced safety CAN, EYE local 2 CAN, (G)_Chassis CAN

Courtesy of SUBARU OF AMERICA, INC.

No. 17 steering angle sensor vicinity

Courtesy of SUBARU OF AMERICA, INC.
